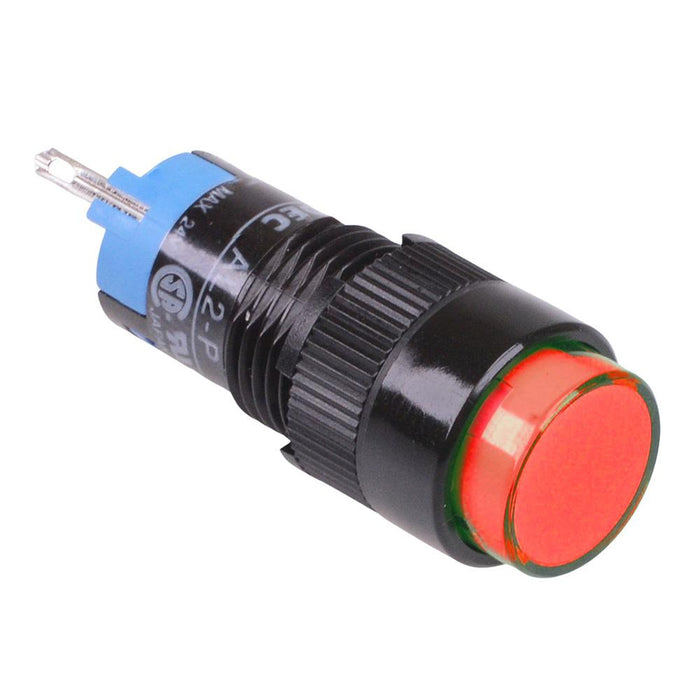

AL2M-P1PR Red 12mm Round Pilot Light IP65 IDEC

by IDEC
SKU 935230

MPN: AL2M-P1PR

Availability:
8 in stock
Original price £10.70 - Original price £10.70
Original price
£10.70
£10.70 - £10.70
Current price £10.70
The AL2M-P1PR is a red indicator light manufactured by IDEC, featuring 2V LED illumination and round body. The pilot light is designed for 12mm panel cut-outs and is suitable for use in a wide range of control panels.

  • Red LED
  • Forward voltage: 2.0V
  • Rated current: 20mA
  • Panel cut-out: 12mm
  • Protection rating: IP65
  • Solder terminals
  • Dimensions: 36.5 x 14mm (length x diameter)
  • Specification
    Back Order Lead Time 196 Days
    Colour Red
    Diameter 14mm
    Forward Current 20mA
    Lamp Type LED
    Length 38mm
    Life Expectancy 50,000 Hours
    Mounting Type Panel Mount
    Operating Temperature -25°C to +55°C
    Panel Cut Out 12mm
    Panel Thickness 6mm
    Protection Level IP65
    Voltage Rating 2VDC
