9133YCD APEM Subminiature Right Angle Momentary Normally Open Push Button Switch SPST
by APEM
SKU 487548
MPN: 9133YCD
Availability:
461 in stock
Original price
£4.50
-
Original price
£4.50
Original price
£4.50
£4.50
-
£4.50
Current price
£4.50

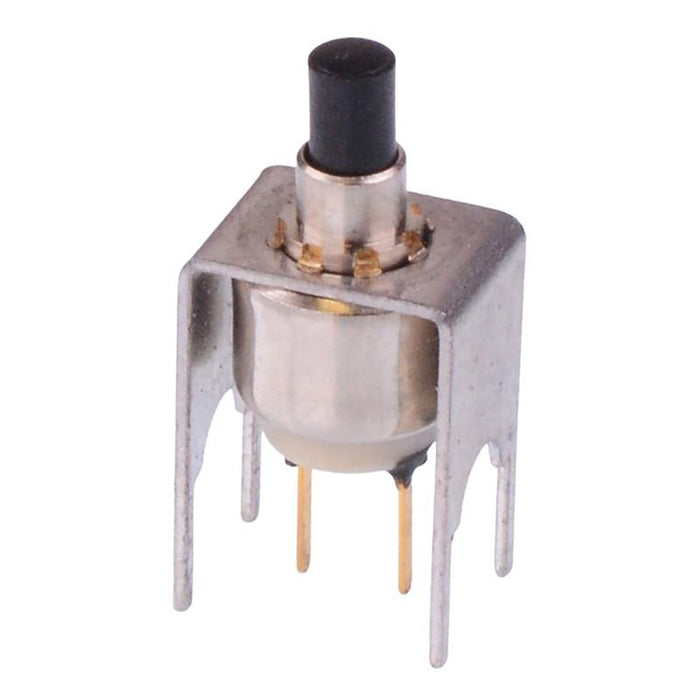

The 9133YCD is a subminiature momentary push button switch manufactured by APEM, with SPST contacts and plain bushing. The switch features solder terminals and is suitable for low power pcb mount applications.
SPST-NO contacts Plain bushing Gold plated brass terminals Rating: 0.1A 30VDC Support bracket Terminal pitch: 7.62mm Case height: 6.1mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 250,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +65°C |
| Product Series | 9000 |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
