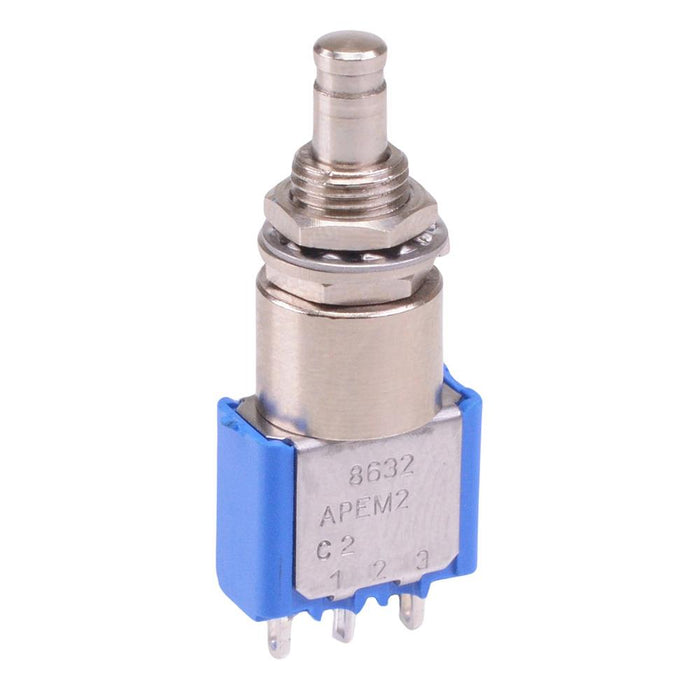

8632A On-(On) Momentary Miniature Push Button Switch SPDT 4A 30VDC APEM
by APEM
SKU 487133
MPN: 8632A
Availability:
15 in stock
Original price
£8.65
-
Original price
£8.65
Original price
£8.65
£8.65
-
£8.65
Current price
£8.65
The 8632A is a momentary miniature push button switch featuring SPDT contacts and standard 6.35mm bushing. The switch features a 4A 30VDC rating and solder lug terminals making it suitable for a wide range of low voltage applications.
On-(On) momentary action SPDT contacts 6.35mm bushing Solder lug terminals Rating: 4A 30VDC, 6A 125VAC, 3A 250VAC Panel cut-out: 6.5mm Dimensions: 35.2 x 10 x 13.2mm (height x width x depth)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC, 6A 125VAC, 3A 250VAC |
| Current Rating | 4A |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Product Series | 8000 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
