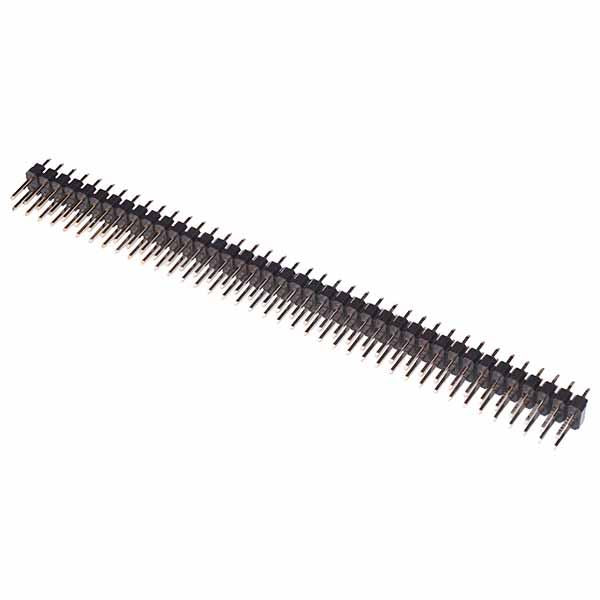

80-Way Double Row Male Header 2.54mm
SKU 483094
MPN: 483094
Availability:
108 in stock
Original price
£0.54
-
Original price
£0.54
Original price
£0.54
£0.54
-
£0.54
Current price
£0.54
80 way double row 2.54mm headers for vertical mounting, suitable for a range of applications including use with PCBs, flat cables etc.
Gold plated brass contacts 0.64mm pin diameter Solder termination Pitch: 2.54mm 6mm pin height Can easily be separated
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 1A |
| Housing Material | PA6T |
| Mounting Type | PCB Mount |
| Number of Pins | 80 |
| Number of Ways | 80 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
