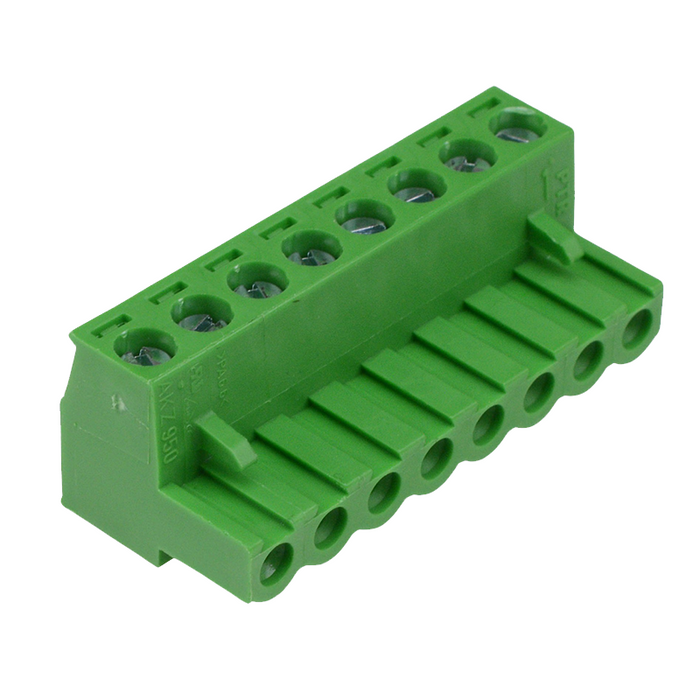

8-Way 5.08mm Right Angle Pluggable Terminal Block Green 15A 300V
by PTR HARTMANN
SKU 488452
MPN: AKZ950/08-5.08-GREEN
Availability:
35 in stock
Original price
£2.48
-
Original price
£2.48
Original price
£2.48
£2.48
-
£2.48
Current price
£2.48
8 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5.08mm pitch and parallel wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
8 pole 5.08mm pitch Right angle Material: PA66 Rating: 15A 300V Wire size: 22-12AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Material | Brass |
| Current Rating | 15A |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 8 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 22-12AWG |
