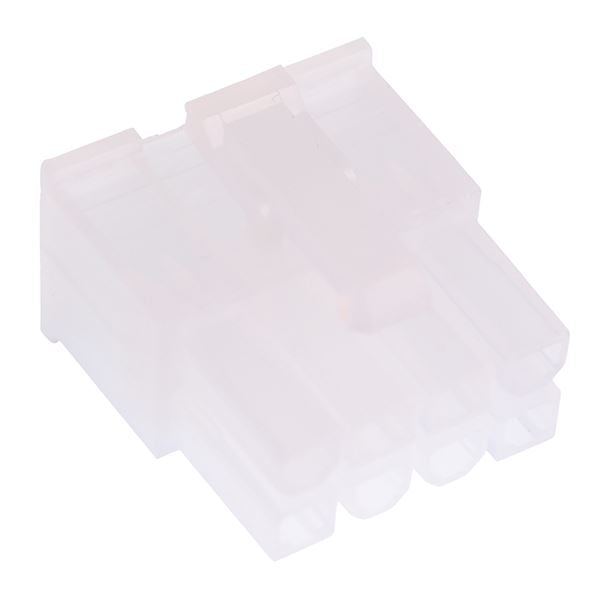

8 Way 4.2mm Mini-Fit Female Housing Connector
SKU 484694
MPN: 484694
Availability:
500 in stock
Original price
£0.28
-
Original price
£0.28
Original price
£0.28
£0.28
-
£0.28
Current price
£0.28
Double row 8 way receptacle featuring 4.2mm pitch suitable for mating with a male housing. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex Mini-Fit.
4.2mm pitch Nylon 66 housing Rated Current: 9A Rated Voltage: 300V Wire range: 16-28AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 9A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Ways | 8 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 4.2mm |
| Termination Method | Crimp |
| Voltage Rating | 300VAC |
| Wire Range | 28-16AWG |
