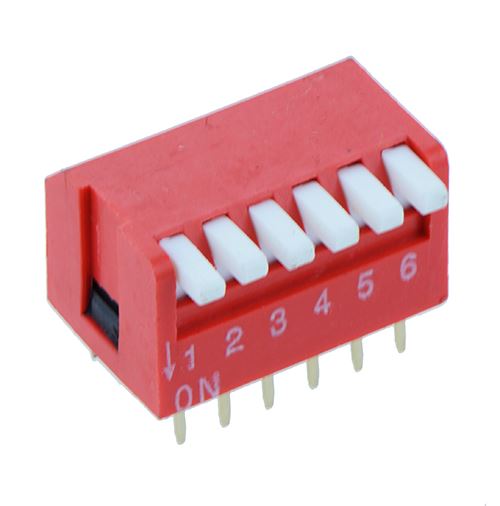

6-Way Piano DIP DIL Red PCB Switch
SKU 124208
MPN: 124208
Availability:
283 in stock
Original price
£0.62
-
Original price
£0.62
Original price
£0.62
£0.62
-
£0.62
Current price
£0.62
6-Way piano style DIL switch with 2.54mm pitch and gold plated contacts suitable for a range of applications including computers and communications equipment.
6-Ways SPST contacts Gold plated contacts 2.54mm pitch On/off clearly marked on the switch 25mA maximum switching current 24VDC maximum switching voltage
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Operations |
| Material | PBT |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 6 |
| Operating Force | 9.8N max |
| Operating Temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
