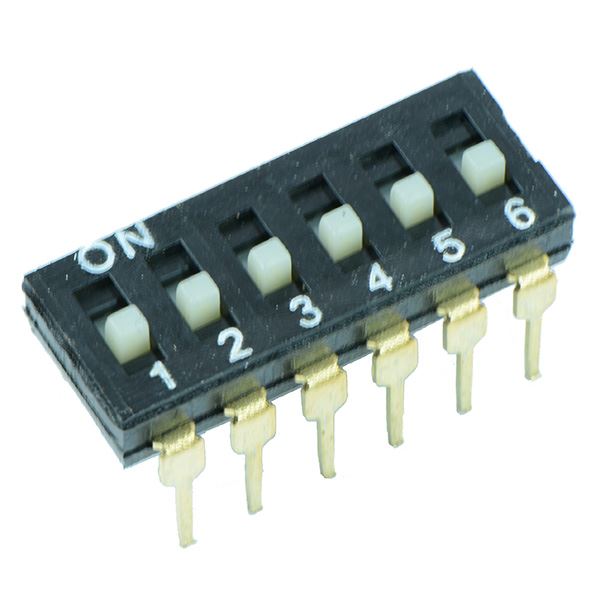

6 Way Low Profile DIL Switch
SKU 550970
MPN: 550970
Availability:
160 in stock
Original price
£0.58
-
Original price
£0.58
Original price
£0.58
£0.58
-
£0.58
Current price
£0.58
Low profile DIL switches manufactured from PPS, featuring 2.54mm pitch and SPST contacts.
6 ways Rating: 25mA 24VDC Housing material: PPS Contact material: gold plated brass Operating force: 8N 7.62mm row pitch 2.54mm lead pitch End stackability
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 1,000 Cycles |
| Material | PPS |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 6 |
| Operating Force | 8N Max |
| Operating Temperature | -25°C to +70°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
