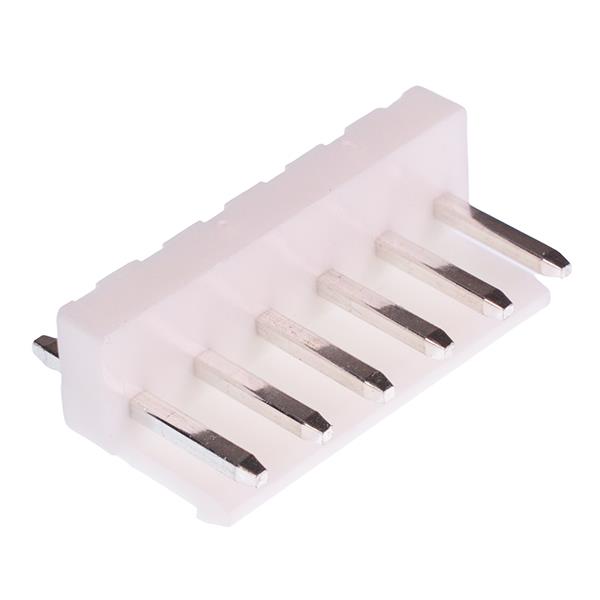

6 Way 3.96mm PCB Straight Pin header
SKU 484688
MPN: 484688
Availability:
2023 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
£0.19
-
£0.19
Current price
£0.19
Single row 6 way pin header featuring 3.96mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated, suitable as a replacement for JST VH.
3.96mm pitch Solder termination PA66 housing Rated Current: 10A Rated Voltage: 250V Wire range: 18-26AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 10A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Ways | 6 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 3.96mm |
| Termination Method | Solder |
| Voltage Rating | 250VAC |
| Wire Range | 26-18AWG |
