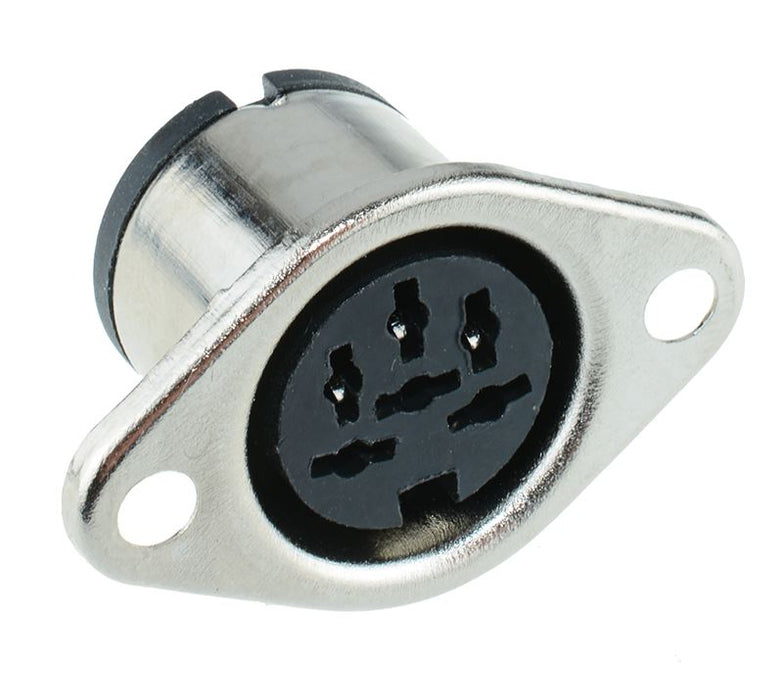

6-Pin DIN Panel Mount Socket Connector
SKU 210085
MPN: 210085
Availability:
1331 in stock
Original price
£0.48
-
Original price
£0.48
Original price
£0.48
£0.48
-
£0.48
Current price
£0.48
Chassis mount DIN socket with 6 ways suitable mating with male plugs. The sockets are designed for panel mounting and are commonly used for audio applications.
Solder terminals Straight orientation 15mm panel cut-out Mounting hole pitch: 21.4mm
Specification
| Back Order Lead Time | 30 Days |
| Colour | Silver |
| Contact Material | Tin Plated Brass |
| Current Rating | 1A |
| Gender | Female |
| Housing Material | Nickel Plated SPCC |
| Mounting Type | Panel |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 15mm |
| Termination Method | Solder |
| Voltage Rating | 100VAC |
