6.8uH Axial Leaded Inductor
SKU 480011
MPN: 480011
Availability:
8 in stock
Original price
£0.15
-
Original price
£0.15
Original price
£0.15
£0.15
-
£0.15
Current price
£0.15

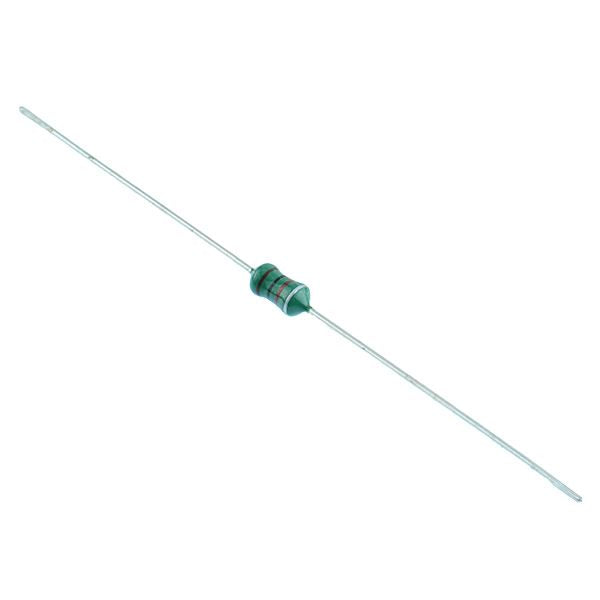

6.8uH axial leaded inductor featuring an epoxy resin coating providing high reliability, suitable for general applications including decoupling, RF blocking and suppression.
Inductance: 6.8uH
DC current max: 470mA
DC resistance: 0.45Ω
Body dimensions: 3 x 8mm (Diameter x Length)
Lead dimensions: 0.55 x 27mm (Diameter x Length)
Specification
| Back Order Lead Time | 5 Days |
| Body Dimensions | 8.0 x 3.0mm |
| DC Current | 470mA |
| DC Resistance | 0.45Ω |
| MOQ | 10 |
| Q Min | 50 |
| SRF | 40MHz |
| Tolerance | ±10% |
