5V Mini Power Songle PCB Relay SPDT 10A SRD-05VDC-SL-C
by Songle
SKU 309000
MPN: SRD-05VDC-SL-C
Availability:
163 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
£0.78
-
£0.78
Current price
£0.78

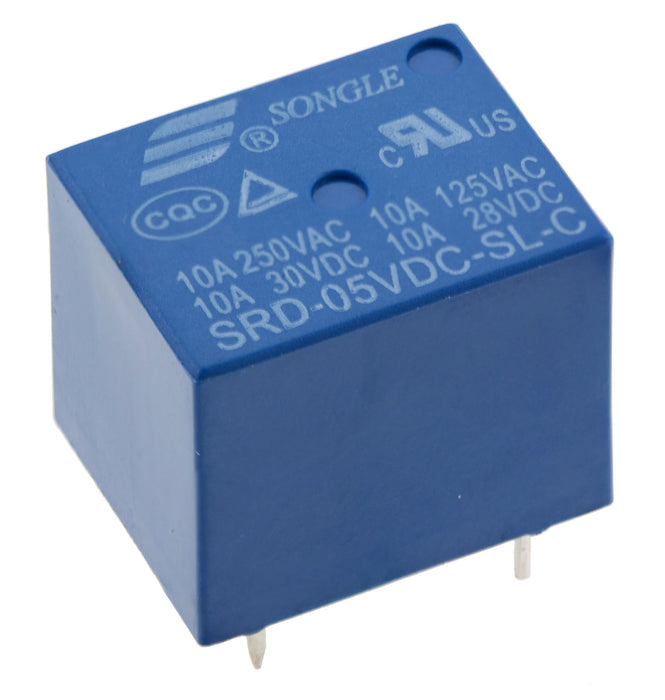

5V Songle cube relay featuring SPDT contacts, housed in a compact and sealed package. The relay features 10A current rating and is suitable for a wide range of through hole PCB applications.
Compact and sealed construction Coil voltage: 5VDC Contacts: SPDT Maximum switching current: 10A Maximum switching voltage: 110VDC, 250VAC Coil Power: 0.45W Dimensions: 19 x 15 x 15mm
Specification
| Ambient Temperature | -25°C to +70°C |
| Back Order Lead Time | 30 Days |
| Coil Resistance | 55Ω |
| Coil Voltage | 5VDC |
| Contact Arrangement | SPDT |
| Maximum Continuous Voltage | 6VDC |
| Maximum Switching Current | 10A |
| Maximum Switching Voltage | 250VAC / 110VDC |
| Mounting Type | PCB |
| Number of Contacts | 5 |
| Power Consumption | 0.45W |
| Terminal Type | Through Hole |
