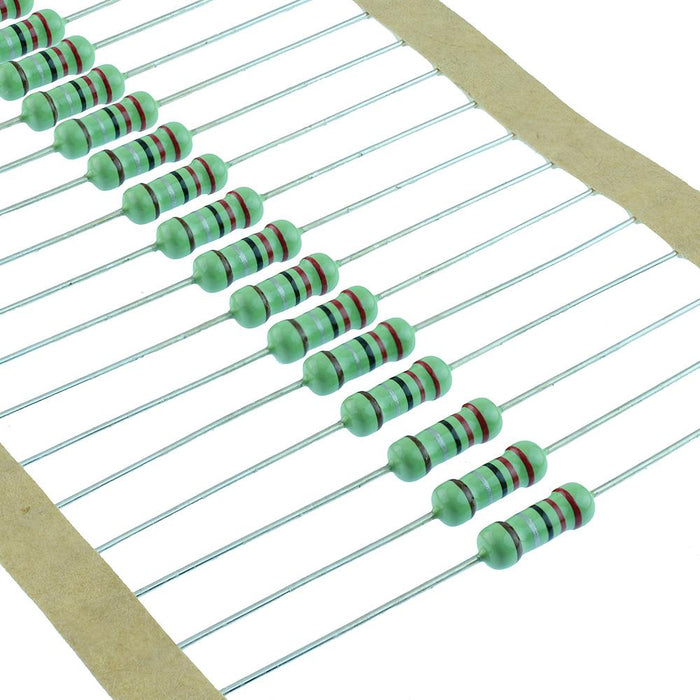

56K 0.5W Metal Film Resistor 1% - Pack of 50
SKU 989524
MPN:
Availability:
91 in stock
Original price
£1.74
-
Original price
£1.74
Original price
£1.74
£1.74
-
£1.74
Current price
£1.74
56K high stability 0.5W resistors featuring a 1% tolerance and epoxy coating suitable for industrial and consumer electronics applications.
Power rating: 0.5W Tolerance: 1% Body dimensions: 9 x 3.2mm (Length x Diameter) Lead diameter: 0.58mm Supplied on tape packaging Supplied in packs of 50
Specification
| Back Order Lead Time | 45 Days |
| Body Dimensions | 9.0 x 3.2mm (Length x Diameter) |
| Lead Diameter | 0.58mm |
| Maximum Operating Voltage | 350V |
| mpn | 989524 |
| Operating Temperature | -55°C to +155°C |
| Packaging | Cut Tape |
| Power Rating | 0.5W |
| Resistance | 56KΩ |
| Temperature Coefficient | ±100ppm/°C |
| Termination | Axial |
| Tolerance | ±1% |
