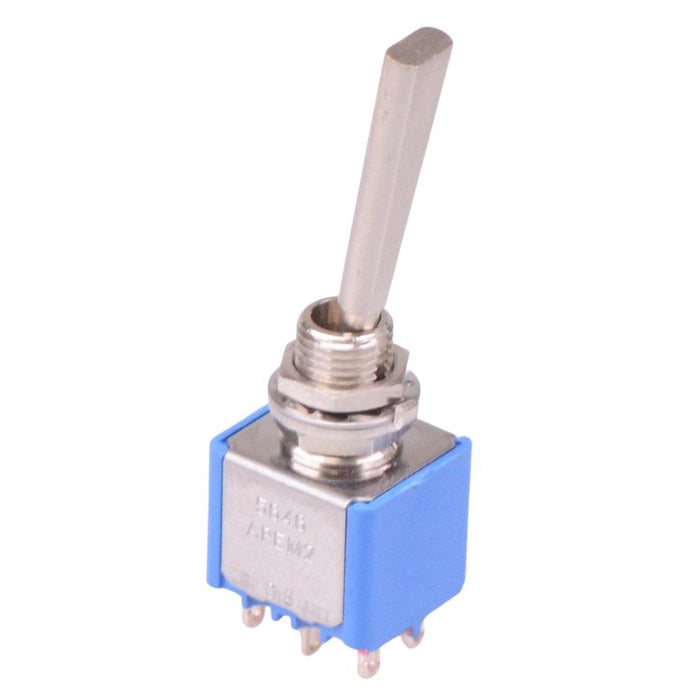

5646AB-8 APEM On-On Miniature Toggle Switch Flat Lever DPDT
by APEM
SKU 489858
MPN: 5646AB-8
Availability:
174 in stock
Original price
£6.43
-
Original price
£6.43
Original price
£6.43
£6.43
-
£6.43
Current price
£6.43
The 5646AB-8 is a miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm Silver contacts Epoxy sealed terminals Flat 21.3mm length lever Dimensions: 45.0 x 12.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
