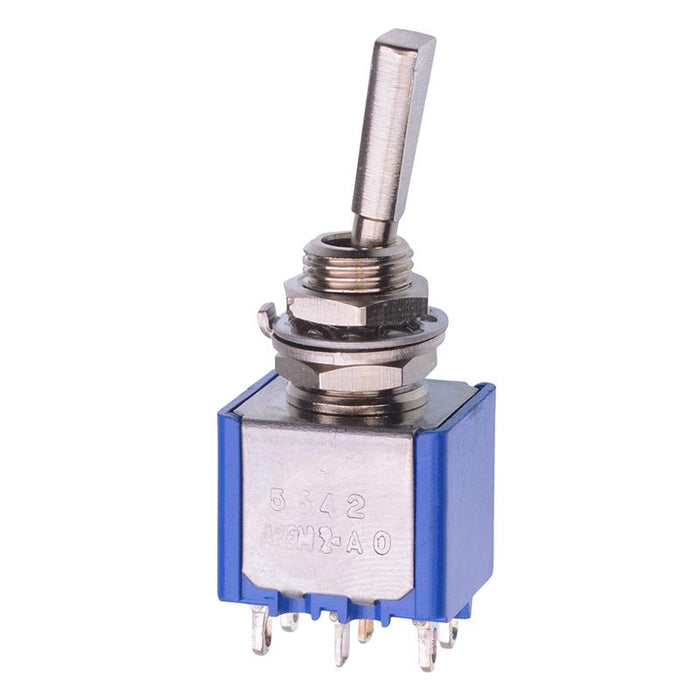

5642A9 On-(On) Momentary 6.35mm Miniature Toggle Switch DPDT 4A 30VDC APEM
by APEM
SKU 486024
MPN: 5642A9
Availability:
Only 4 left!
Original price
£7.11
-
Original price
£7.11
Original price
£7.11
£7.11
-
£7.11
Current price
£7.11
The 5642A9 is a miniature toggle switch featuring On-(On) DPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals
Flat lever
Contact rating: 4A 30VDC
Panel cut-out: 6.5mm
Dimensions: 34.2 x 12.0 x 13.2mm (height x depth x length)
UL, CSA, CECC approved
APEM 5000 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
