5637AD9 APEM (On)-Off-(On) Momentary 6.35mm Miniature Toggle Switch SPDT 4A 30VDC
by APEM
SKU 488000
MPN: 5637AD9
Availability:
Out of stock
Sold out
Original price
£3.26
-
Original price
£3.26
Original price
£3.26
£3.26
-
£3.26
Current price
£3.26

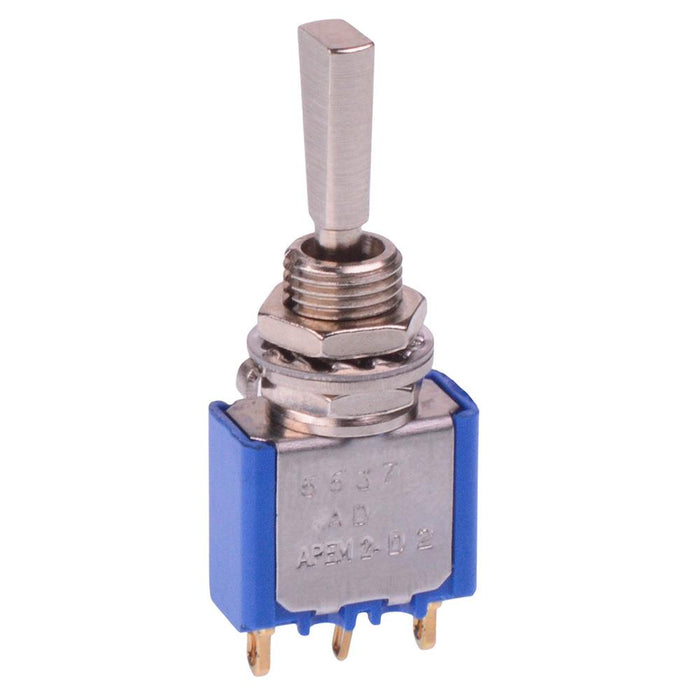

The 5637AD9 is a miniature toggle switch featuring a 6.35mm bushing and (On)-Off-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
SPDT contacts (On)-Off-(On) momentary operation Solder terminals Lever: paddle 11.4mm length Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
