5636AD2K-1V APEM Locking Lever On-On Miniature Toggle Switch SPDT
by APEM
SKU 489844
MPN: 5636AD2K-1V
Availability:
30 in stock
Original price
£10.34
-
Original price
£10.34
Original price
£10.34
£10.34
-
£10.34
Current price
£10.34

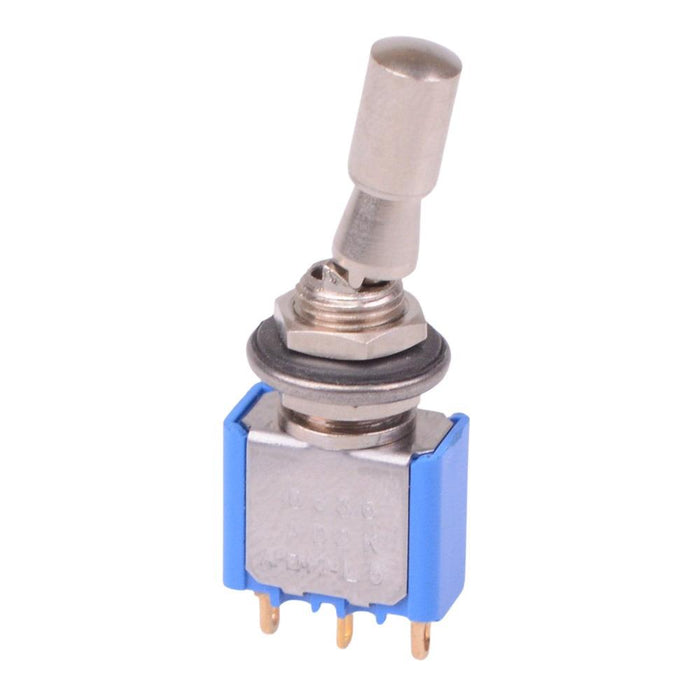

The 5636AD2K-1V is a miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature a locking lever and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 14.85mm length lever Locking in 1 position Gold plated silver contacts Dimensions: 38.55 x 7.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
