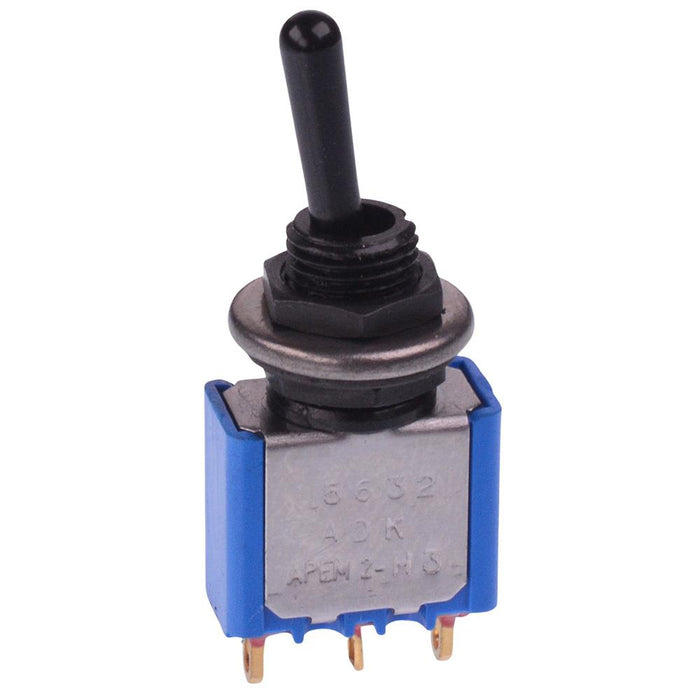

5632ADGKB APEM Black On-(On) Momentary 6.35mm Miniature Toggle Switch SPDT 4A 30VDC
by APEM
SKU 488113
MPN: 5632ADGKB
Availability:
7 in stock
Original price
£6.41
-
Original price
£6.41
Original price
£6.41
£6.41
-
£6.41
Current price
£6.41
The 5632ADGKB is a miniature toggle switch featuring a 6.35mm bushing and On-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
SPDT contacts On-(On) momentary operation Solder terminals Lever: round 10.5mm length Rating: 4A 30VDC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
