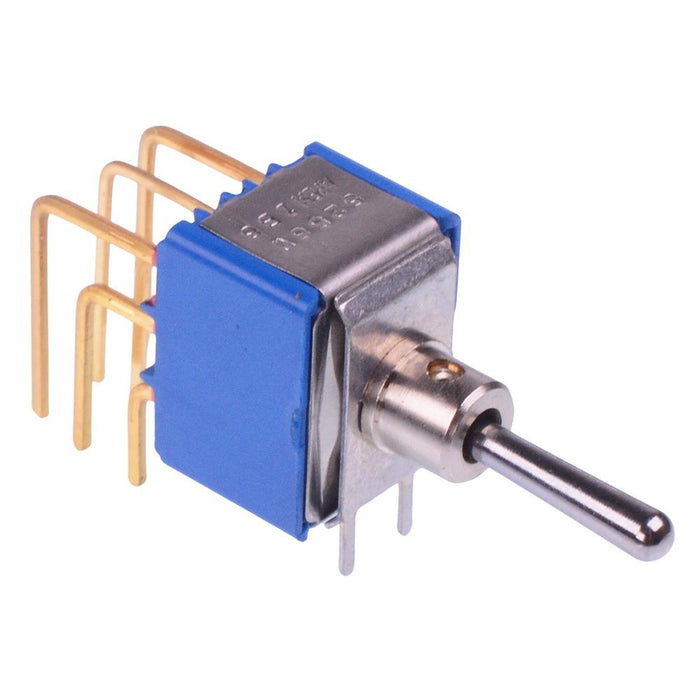

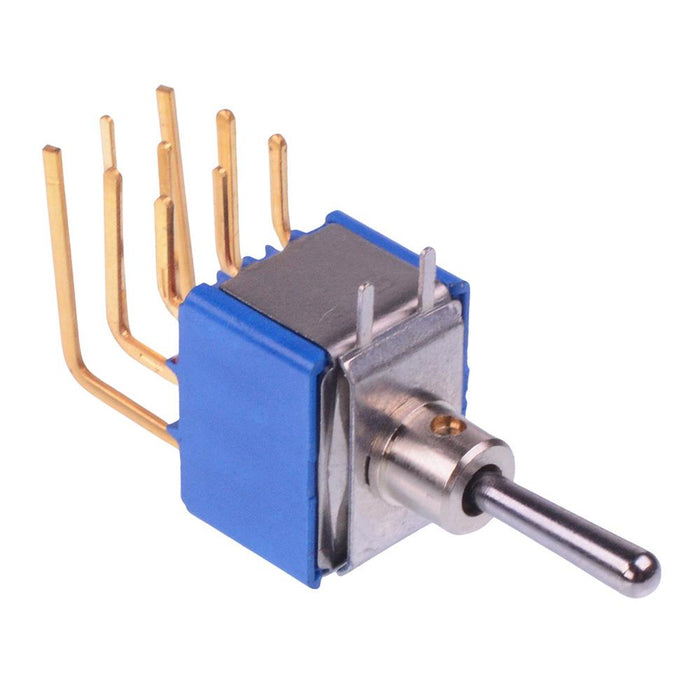

5258WCDB APEM On-Off-(On) Momentary PCB Miniature Toggle Switch 3PDT
by APEM
SKU 487623
MPN: 5258WCDB
Availability:
25 in stock
Original price
£4.79
-
Original price
£4.79
Original price
£4.79
£4.79
-
£4.79
Current price
£4.79
The 5258WCDB is a miniature toggle switch featuring a plain bushing and On-Off-(On) momentary 3PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
3PDT contacts On-Off-(On) momentary operation Right angle PCB terminals Lever: round 13.5mm length 4.7mm pitch terminal spacing Rating: 0.4VA 20VAC/DC Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching / Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 3PDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
