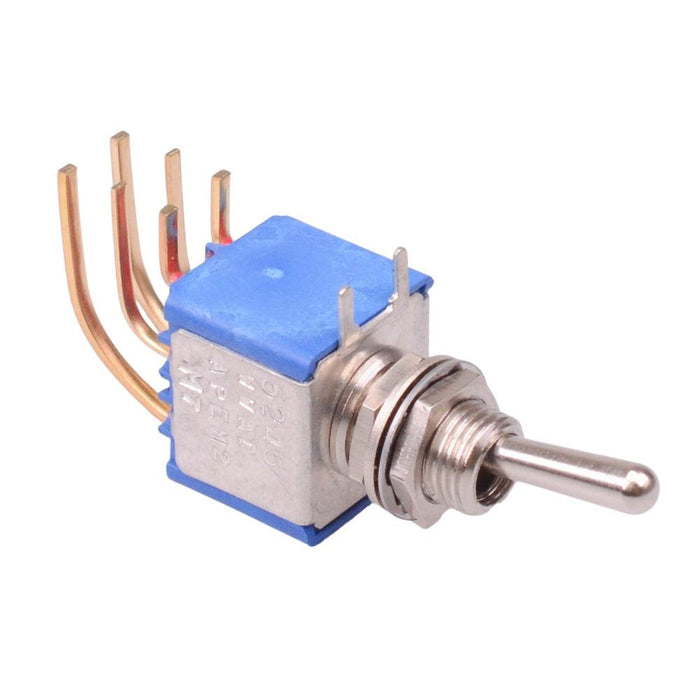

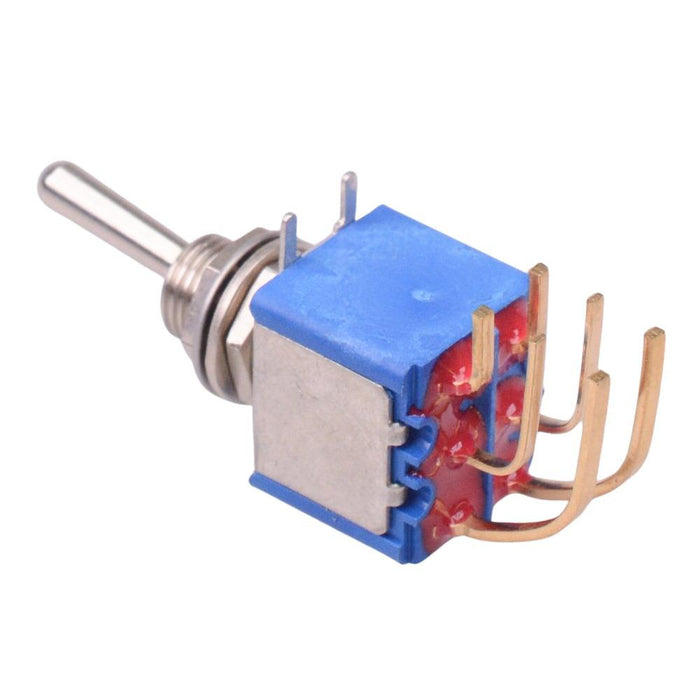

5246WWADBX386 APEM On-On Right Angle PCB Miniature Toggle Switch DPDT
by APEM
SKU 489833
MPN: 5246WWADBX386
Availability:
201 in stock
Original price
£5.77
-
Original price
£5.77
Original price
£5.77
£5.77
-
£5.77
Current price
£5.77
The 5246WWADBX386 is a right angle miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Contact rating: 4A 30VDC Gold plated silver contacts Epoxy sealed terminals 10.5mm round lever Terminal pitch: 4.75 x 3.81mm Body dimensions: 11 x 12 x 13.2mm (length x width x height) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
