5244WCDB13X404 APEM On-On-On Miniature PCB Toggle Switch DPDT
by APEM
SKU 487619
MPN: 5244WCDB13X404
Availability:
90 in stock
Original price
£3.30
-
Original price
£3.30
Original price
£3.30
£3.30
-
£3.30
Current price
£3.30

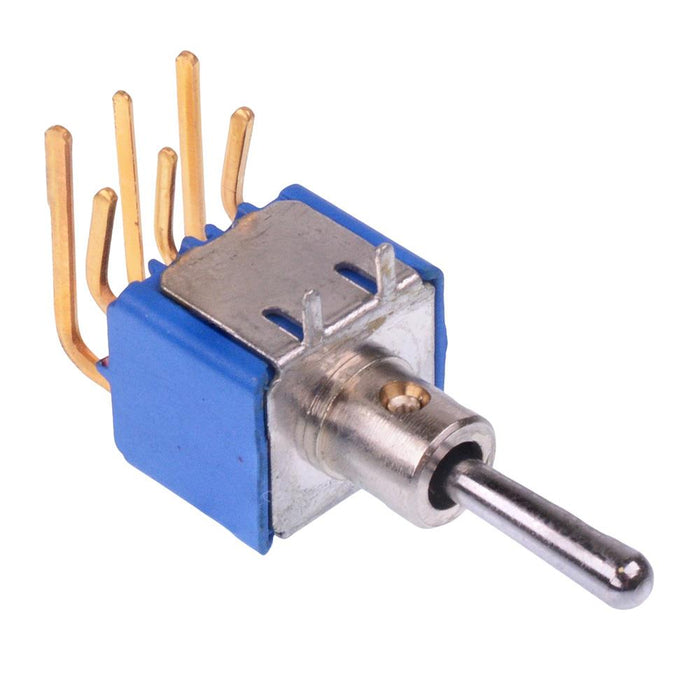

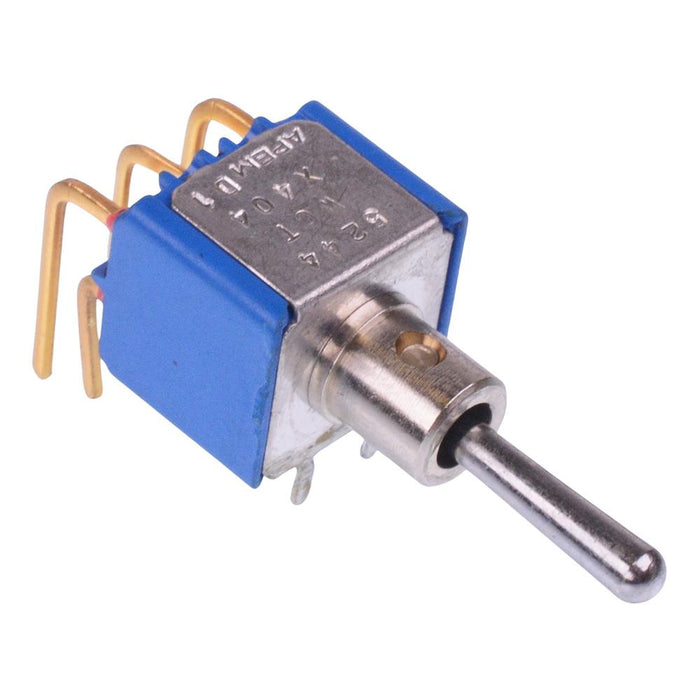

The 5244WCDB13X404 is a miniature toggle switch featuring a plain bushing and On-On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
DPDT contacts On-On-On operation Right angle PCB terminals Lever: round 12.5mm length 4.7mm pitch terminal spacing Rating: 0.4VA 20VAC/DC Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
