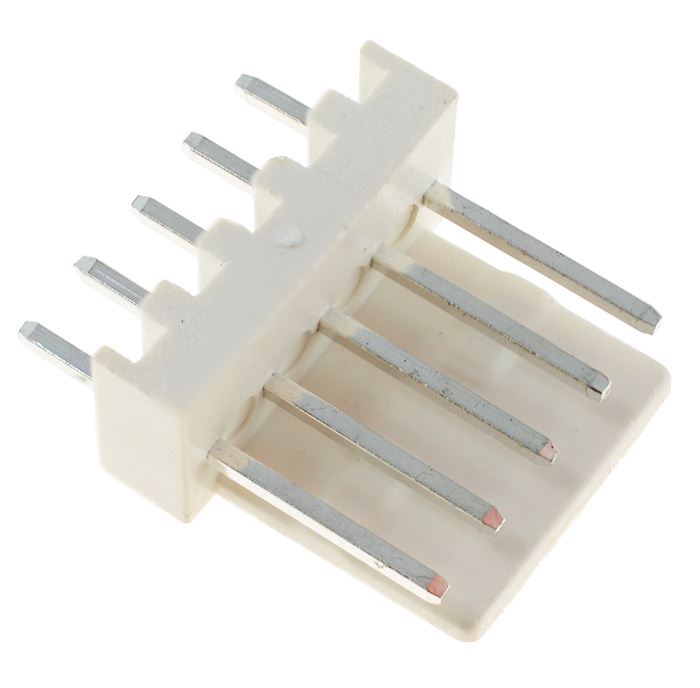

5-Way Straight Pin PCB Header 2.54mm

SKU 356019

MPN: 356019

Availability:
8927 in stock
Original price £0.13 - Original price £0.13
Original price
£0.13
£0.13 - £0.13
Current price £0.13
Single row 5 way pin header with 2.54mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated and are suitable for replacing Molex 5051 connectors.

  • 2.54mm pitch
  • Solder termination
  • Nylon-66 housing
  • Tin plated brass contacts
  • Rated Current: 4A
  • Rated Voltage: 250V
  • Specification
    Back Order Lead Time 45 Days
    Current Rating 4A
    Housing Material PA6T
    MOQ 5
    Mounting Type PCB Mount
    Number of Pins 5
    Number of Ways 5
    Operating Temperature -25°C to +85°C
    Pitch 2.54mm
    Termination Method Solder
    Voltage Rating 250VAC
    Wire Range 22-28AWG
