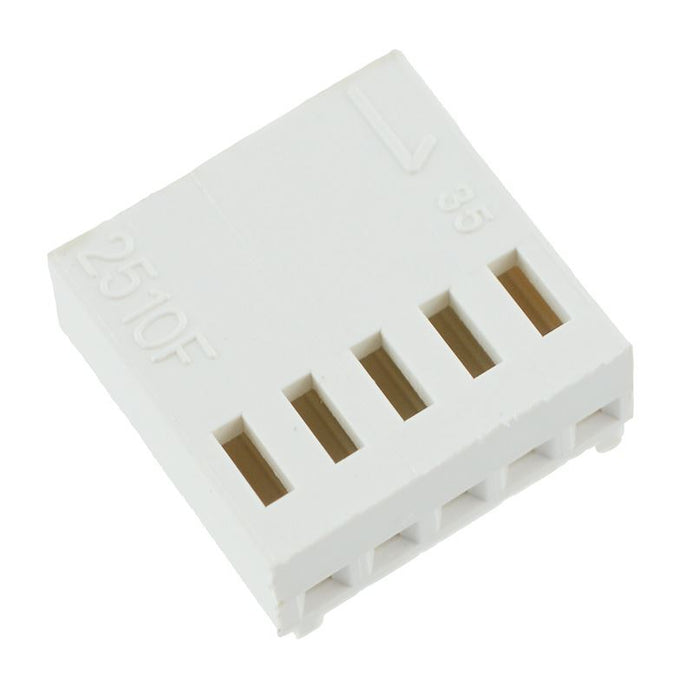

5-Way Straight PCB Crimp Housing 2.54mm
SKU 356023
MPN: 356023
Availability:
3230 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
£0.14
-
£0.14
Current price
£0.14
Single row 5 way housing with 2.54mm pitch suitable for connecting wires to PCBs. The housing fits 22-28AWG cable and is suitable for replacing Molex 5051 connectors.
2.54mm pitch Rated Current: 4A Rated Voltage: 250V
Specification
| Back Order Lead Time | 45 Days |
| Current Rating | 4A |
| Housing Material | PA6T |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Ways | 5 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 2.54mm |
| Termination Method | Crimp |
| Voltage Rating | 250VAC |
| Wire Range | 22-28AWG |
