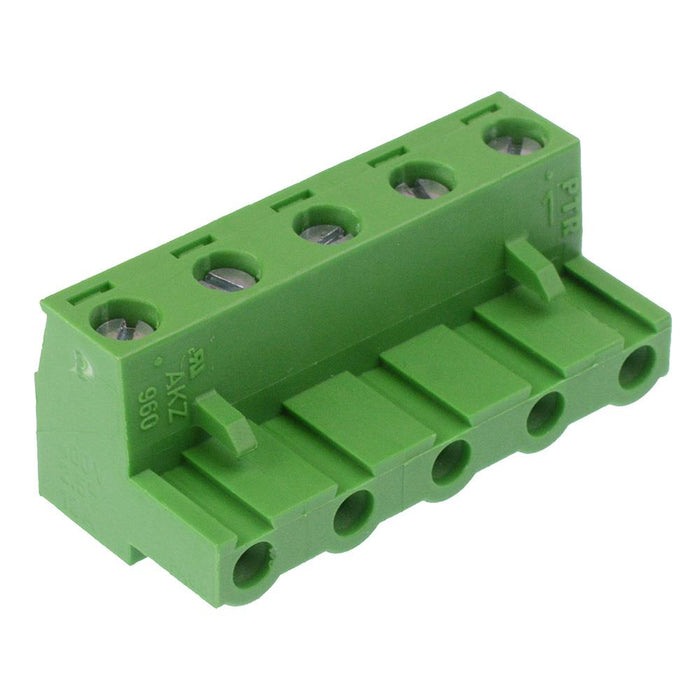

5-Way 7.62mm Right Angle Pluggable Terminal Block Green 15A 300V
by PTR HARTMANN
SKU 488064
MPN: AKZ960/05-7,62-GREEN
Availability:
80 in stock
Original price
£1.45
-
Original price
£1.45
Original price
£1.45
Inc VAT
£1.45
-
£1.45
Current price
£1.45
Inc VAT
5 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 7.62mm pitch and parallel wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
5 pole 7.62mm pitch Right angle Material: PA66 Rating: 15A 300V Wire size: 22-12AWG
Specification
Back order lead time | 10 Days |
Colour | Green |
Contact material | Brass |
Current rating | 15A |
Housing material | PA66 |
Mounting type | Cable Mount |
Number of ways | 5 |
Operating temperature | -40°C to +105°C |
Pitch | 7.62mm |
Termination method | Screw |
Voltage rating | 300VAC |
Wire range | 22-12AWG |
