5-Way 5.08mm Right Angle Pluggable Terminal Block Green 15A 300V
by PTR HARTMANN
SKU 488450
MPN: AKZ950/05-5.08-GREEN
Availability:
100 in stock
Original price
£1.94
-
Original price
£1.94
Original price
£1.94
Inc VAT
£1.94
-
£1.94
Current price
£1.94
Inc VAT

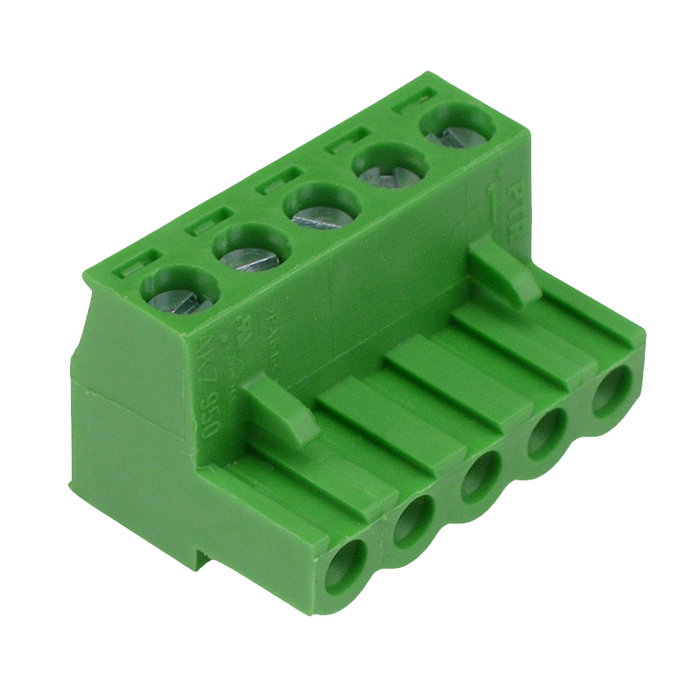

5 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5.08mm pitch and parallel wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
5 pole 5.08mm pitch Right angle Material: PA66 Rating: 15A 300V Wire size: 22-12AWG
Specification
Back order lead time | 10 Days |
Colour | Green |
Contact material | Brass |
Current rating | 15A |
Housing material | PA66 |
Mounting type | Cable Mount |
Number of ways | 5 |
Operating temperature | -40°C to +105°C |
Pitch | 5.08mm |
Termination method | Screw |
Voltage rating | 300VAC |
Wire range | 22-12AWG |
