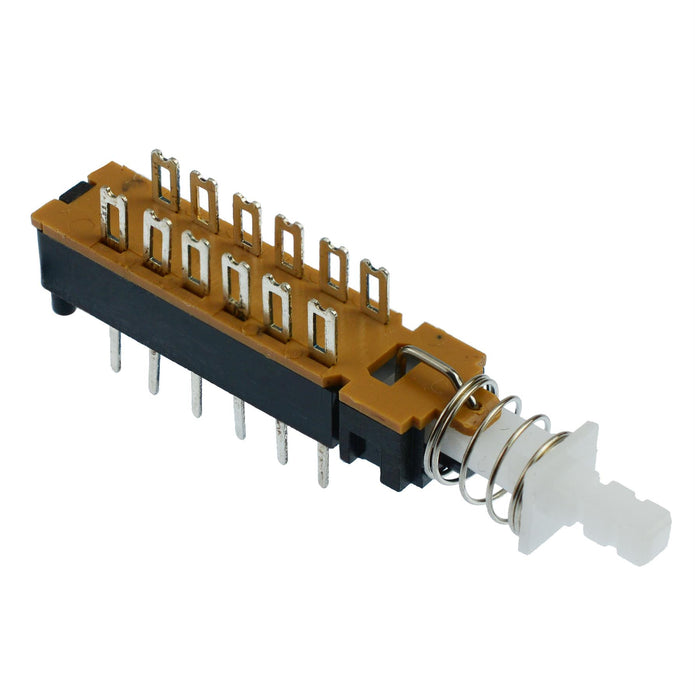

4PDT Latching PCB Switch 0.3A 50VDC
SKU 481785
MPN: 481785
Availability:
602 in stock
Original price
£0.37
-
Original price
£0.37
Original price
£0.37
£0.37
-
£0.37
Current price
£0.37
Latching push button switch featuring 4 poles. The switch has PCB terminals underneath and solder terminals on the top, making them suitable for a wide range of applications.
4PDT contacts PCB terminals underneath and solder terminals on the top 3.3 x 3.3mm square button size Dimensions: 84.5 x 18 x 9mm (Length x Height x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | 4PDT |
| Contact Rating | 0.3A 50VDC |
| Current Rating | 0.3A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 300gf |
| Operating Temperature | -40°C to +80°C |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 50VDC |
