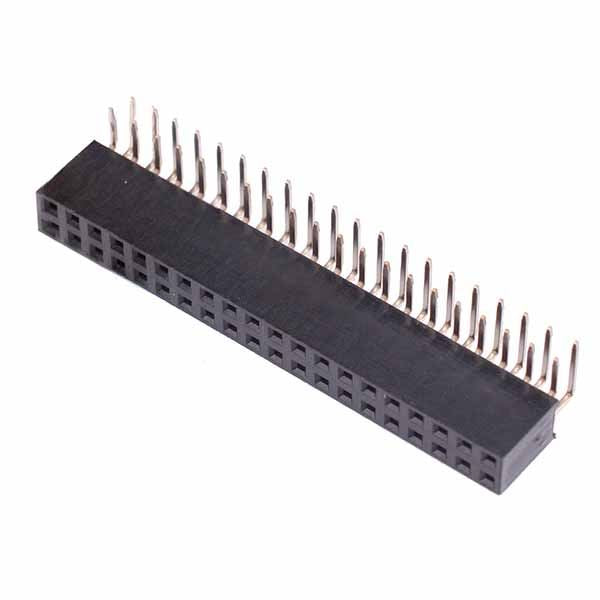

40-Way Double Row Right Angle PCB Socket 2.54mm
SKU 483091
MPN: 483091
Availability:
338 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
£0.59
-
£0.59
Current price
£0.59
40 way right-angle type double row sockets with a 2.54mm pitch perfect as a removable connection for flat cables along with many other electronic applications.
Gold plated brass contacts 0.4mm pin diameter Solder termination Pitch: 2.54mm Pin height: 3.2mm Socket height: 8.4mm
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 1A |
| Housing Material | PA6T |
| Mounting Type | PCB Mount |
| Number of Pins | 40 |
| Number of Ways | 40 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
