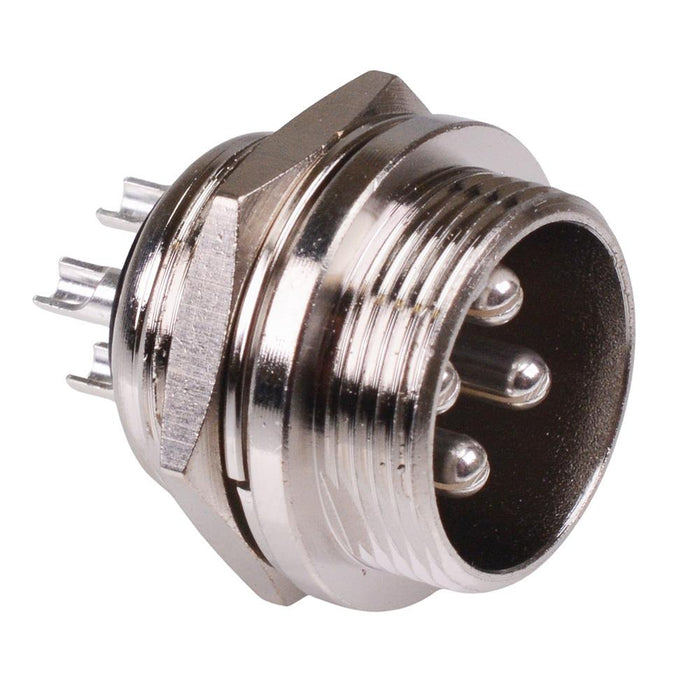

4 Way Male M19 Metal Circular Panel Mount Socket Connector

SKU 488524

MPN: 488524

Availability:
95 in stock
Original price £1.46 - Original price £1.46
Original price
£1.46
£1.46 - £1.46
Current price £1.46
4 pole male circular connector featuring a metal body and IP55 protection rating. The socket features an M19 thread and high current rating suitable for a wide range of panel mount applications.

  • 4 ways
  • Rating: 35A 250V
  • Panel cut-out: 19mm
  • Solder contacts
  • Cable diameter: 9.5mm max
  • Specification
    Back Order Lead Time 30 Days
    Contact Material Copper
    Current Rating 35A
    Gender Male
    Housing Material Zinc Alloy
    Mounting Type Panel Mount
    Number of Ways 4
    Operating Temperature -20°C to +85°C
    Protection Level IP55
    Termination Method Solder
    Thread Size M19
    Voltage Rating 250V
    Wire Range 9.5mm Max
