4 Way M8 Male Industrial Circular Connector IP67 3A
by Degson
SKU 488819
MPN: PB-M8A-04P-MM-SL7001-00A(H)
Availability:
96 in stock
Original price
£3.94
-
Original price
£3.94
Original price
£3.94
£3.94
-
£3.94
Current price
£3.94

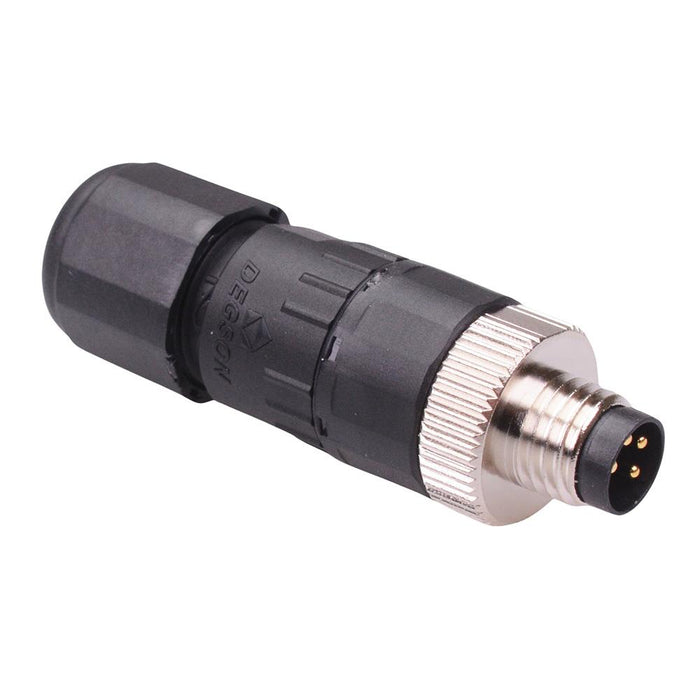

4 contact M8 male circular connector featuring a straight nylon body and screw connections. The connector utilises a space saving design, sealed to IP67 making it suitable for industrial and various other applications. The plug is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.
4 male contacts (A coded) M8 series Screw terminals Sealed to IP67 Unshielded Current rating: 3A Voltage rating: 60V Housing material: PA Contact material: gold plated copper alloy Dimensions: 46.5 x 14mm (length x diameter)
Specification
| Back Order Lead Time | 120 Days |
| Contact Material | Gold Plated Copper Alloy |
| Current Rating | 3A |
| Gender | Male |
| Housing Material | PA |
| Mounting Type | Cable Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +80°C |
| Protection Level | IP67 |
| Termination Method | Screw |
| Thread Size | M8 |
| Voltage Rating | 60V |
