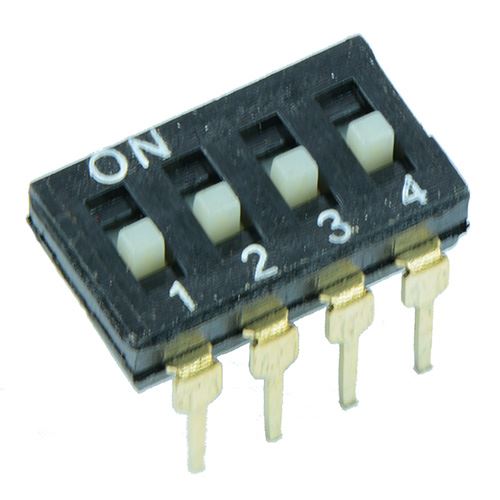

4 Way Low Profile DIL Switch
SKU 550969
MPN: 550969
Availability:
Only 1 left!
Original price
£0.64
-
Original price
£0.64
Original price
£0.64
Inc VAT
£0.64
-
£0.64
Current price
£0.64
Inc VAT
Low profile DIL switches manufactured from PPS, featuring 2.54mm pitch and SPST contacts.
4 ways Rating: 25mA 24VDC Housing material: PPS Contact material: gold plated brass Operating force: 8N 7.62mm row pitch 2.54mm lead pitch End stackability
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact rating | 25mA 24VDC |
| Current rating | 25mA |
| Electrical life | 1,000 Cycles |
| Material | PPS |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 4 |
| Operating force | 8N Max |
| Operating temperature | -25°C to +70°C |
| Pitch | 2.54mm |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
