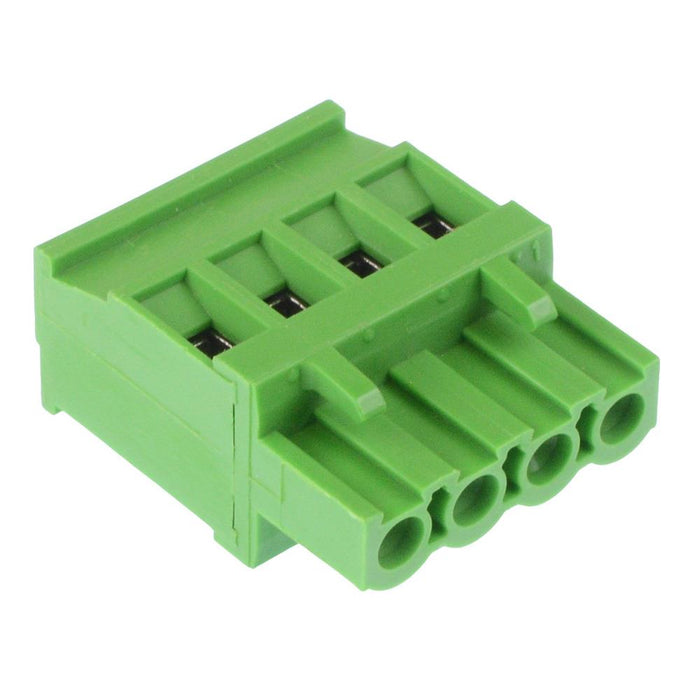

4-Way 5.08mm Vertical Pluggable Terminal Block Green 15A 300V
by PTR HARTMANN
SKU 487966
MPN: AKZ1100/04-5,08-GREEN
Availability:
106 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
Inc VAT
£0.81
-
£0.81
Current price
£0.81
Inc VAT
4 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5.08mm pitch and vertical wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
4 pole 5.08mm pitch Vertical wire entry Material: PA66 Rating: 15A 300V Wire size: 28-10AWG
Specification
Back order lead time | 10 Days |
Colour | Green |
Contact material | Brass |
Current rating | 15A |
Housing material | PA66 |
Mounting type | Cable Mount |
Number of ways | 4 |
Operating temperature | -40°C to +105°C |
Pitch | 5.08mm |
Termination method | Screw |
Voltage rating | 300VAC |
Wire range | 28-10AWG |
