![4-Way 5.08mm Right Angle PCB Header Closed Ends Green 15A 300V](http://www.switchelectronics.co.uk/cdn/shop/files/808d370e-d5e6-48b9-9eee-9a26c6edf713_700x700.jpg?v=1705945175)

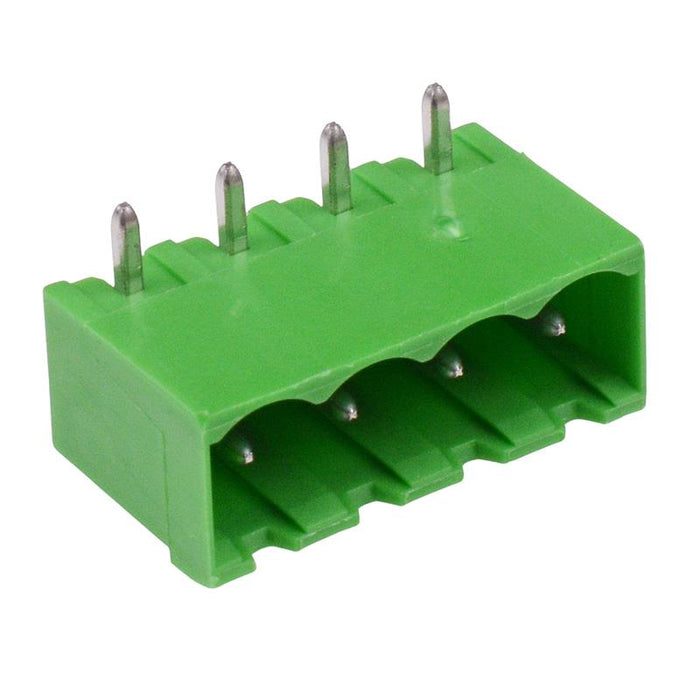

4-Way 5.08mm Right Angle PCB Header Closed Ends Green 15A 300V
by PTR HARTMANN
SKU 488463
MPN: STLZ950/04G-5.08-H-GREEN
Availability:
200 in stock
Original price
£0.61
-
Original price
£0.61
Original price
£0.61
Inc VAT
£0.61
-
£0.61
Current price
£0.61
Inc VAT
4 pole PCB header manufactured by PTR HARTMANN, featuring a 5.08mm pitch and horizontal wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
4 pole 5.08mm pitch Horizontal wire entry Closed ends Material: PA66 PCB hole diameter: 1.4mm Rating: 15A 300V
Specification
Back order lead time | 10 Days |
Colour | Green |
Contact material | Copper Alloy |
Current rating | 15A |
Housing material | PA66 |
Mounting type | PCB Mount |
Number of ways | 4 |
Operating temperature | -40°C to +105°C |
Pitch | 5.08mm |
Voltage rating | 300VAC |
