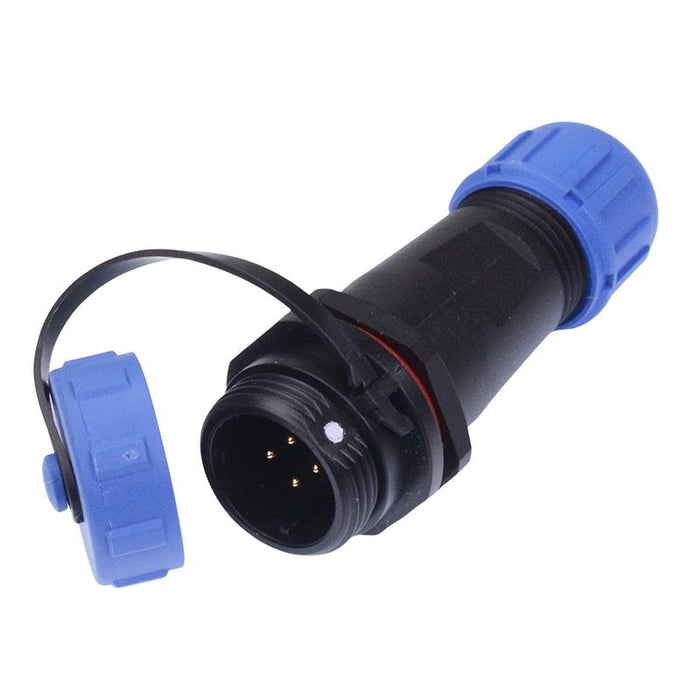

4 Pin Waterproof Male Socket Cable Connector IP68
SKU 485016
MPN: 485016
Availability:
97 in stock
Original price
£3.65
-
Original price
£3.65
Original price
£3.65
Inc VAT
£3.65
-
£3.65
Current price
£3.65
Inc VAT
4 way male socket featuring IP68 protection rating suitable for applications requiring a waterproof and rugged connector.
Outer cable diameter: 4-6.5mm Protection level: IP68 Rating: 5A 200V Solder termination Rated for 500 mating cycles Dimensions: 48 x 19.5mm (length x diameter)
Specification
| Back order lead time | 30 Days |
| Contact material | Gold Plated Brass |
| Current rating | 5A |
| Gender | Male |
| Housing material | PA66 |
| Mounting type | Cable Mount |
| Number of ways | 4 |
| Operating temperature | -25°C to +80°C |
| Protection level | IP68 |
| Termination method | Solder |
| Thread size | W13 |
| Voltage rating | 200V |
| Wire range | 4-6.5mm Diameter |
