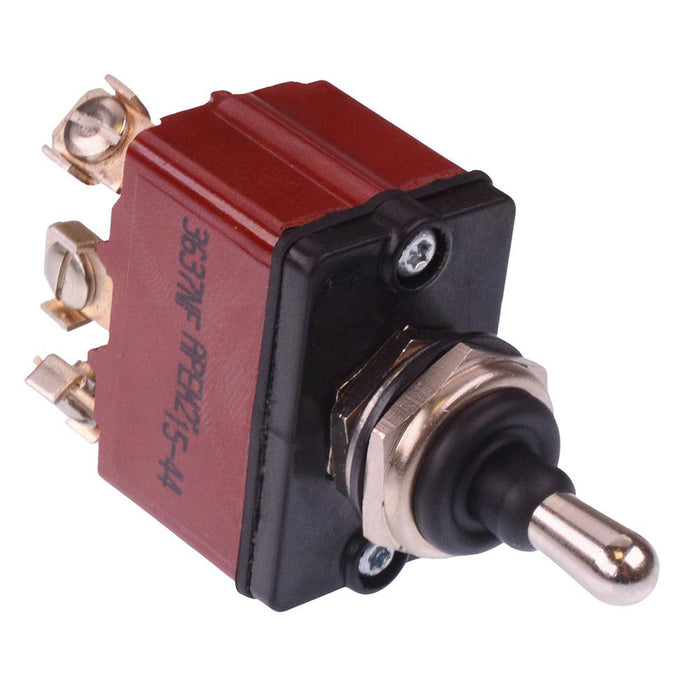

3637NF APEM (On)-Off-(On) Momentary Sealed 12mm Toggle Switch SPDT IP67 12A 28VDC
by APEM
SKU 488025
MPN: 3637NF
Availability:
Only 5 left!
Original price
£24.09
-
Original price
£24.09
Original price
£24.09
£24.09
-
£24.09
Current price
£24.09
The 3637NF is a high performance toggle switch manufactured by APEM, featuring momentary SPDT contacts and screw terminals. The switch features a 12A 28VDC rating and is sealed to IP67 making it suitable for outdoor applications.
SPDT contacts (On)-Off-(On) momentary function Screw terminals Rating: 12A 28VDC IP67 protection rating Solid silver contacts Panel cut-out: 12.2mm Panel thickness: 2mm max. with all accessories
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 12A 28VDC |
| Current Rating | 12A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.2mm |
| Product Series | 3600NF |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 28VDC |
