3333A 2 Position On-Off 16mm Metal Key Switch NO/NC Keys Alike
by APEM
SKU 489814
MPN: 3333A
Availability:
2396 in stock
Original price
£2.45
-
Original price
£2.45
Original price
£2.45
£2.45
-
£2.45
Current price
£2.45

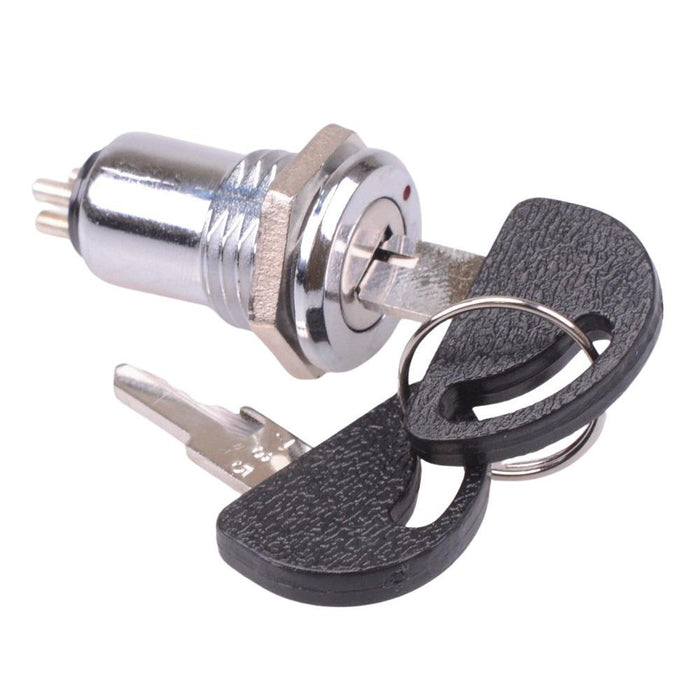

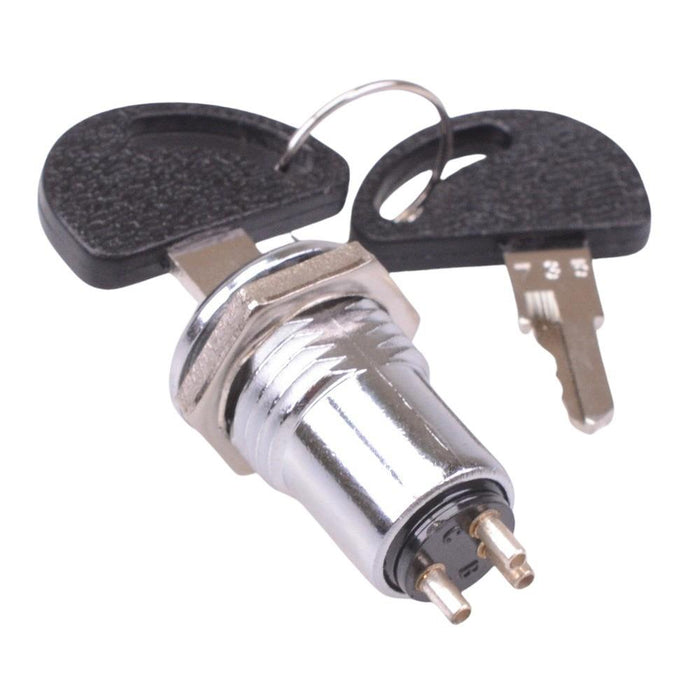

Metal key switch featuring NO/NC contacts, suitable for panel mounting. The switch features 2 alike keys removable in both positions and requires a 16mm panel cut-out size.
NO/NC contacts Keys alike Solder terminals Panel cut-out: 16mm Key removable in both positions Chrome plated zinc alloy housing Rating: 1A 250VAC
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Rating | 1A 250VAC |
| Current Rating | 1A |
| Key Index Angle | 45° |
| Key Withdrawal Position | 1 & 2 |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Panel Cut Out | 16mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
