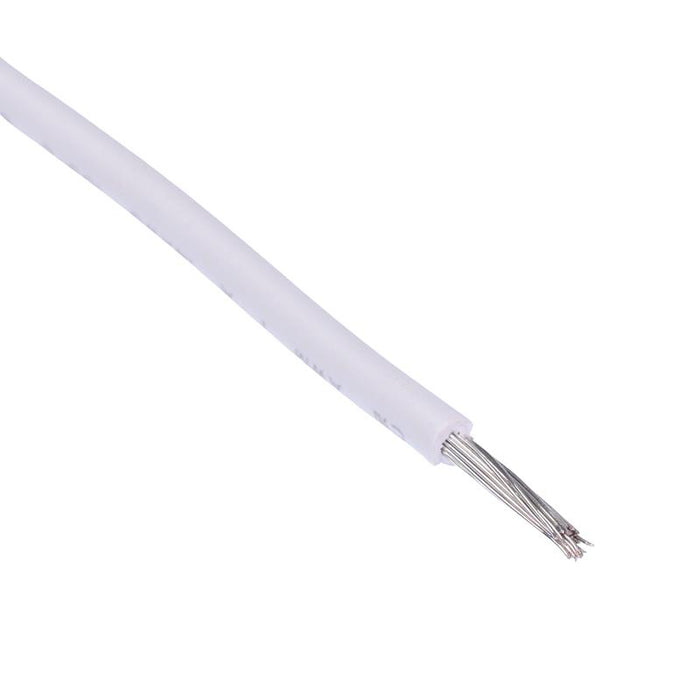

305m White UL1015 14AWG 41/0.25mm Tinned Copper Stranded Wire

SKU 990222

MPN: 990222

Availability:
Only 1 left!
Original price £196.21 - Original price £196.21
Original price
£196.21 Inc VAT
£196.21 - £196.21
Current price £196.21 Inc VAT
White 14AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.

  • Overall diameter: 3.5mm
  • Wide temperature range
  • Tinned copper conductor
  • Rated voltage: 600V
  • 41/0.25mm copper stranding
  • Supplied in a 305 metre coil
  • Specification
    Back order lead time 120 Days
    Colour White
    Conductor cross section 2.08mm²
    Conductor diameter 1.88mm
    Conductor material Tinned Copper
    Conductor stranding 41/0.25mm
    Current rating 33A
    Insulation material PVC
    Insulation thickness 0.79mm
    Operating temperature -30°C to 105°C
    Overall diameter 3.5mm
    Voltage rating 600V
    Wire gauge 14AWG
