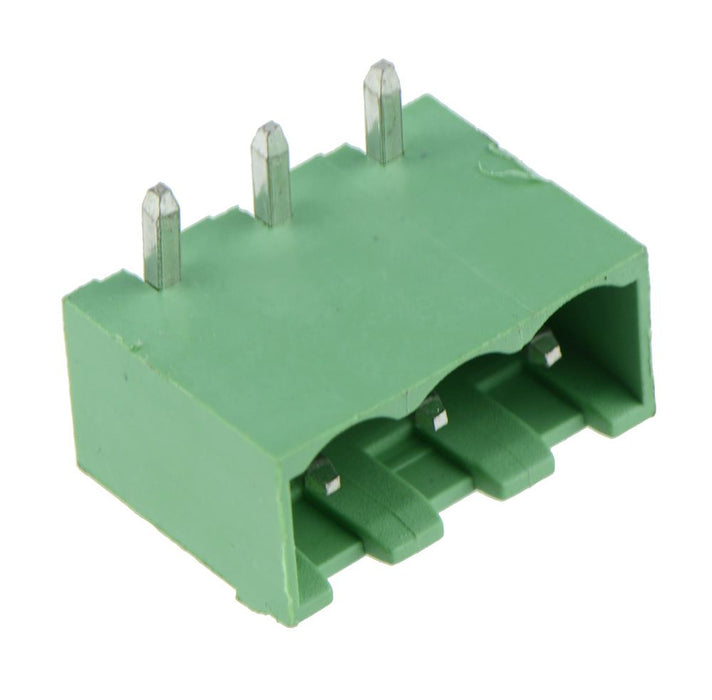

3-Way Plug-In PCB Horizontal Closed Header 5.08mm
SKU 329057
MPN: 329057
Availability:
509 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
-
£0.16
Current price
£0.16
Closed end side entry horizontal headers suitable for PCB mounting.
3 poles 5.08mm pitch 15A current rating 300V voltage rating 2.5mm² maximum wire size Solder termination PCB mounting
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 15A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Solder |
| Voltage Rating | 300VAC |
