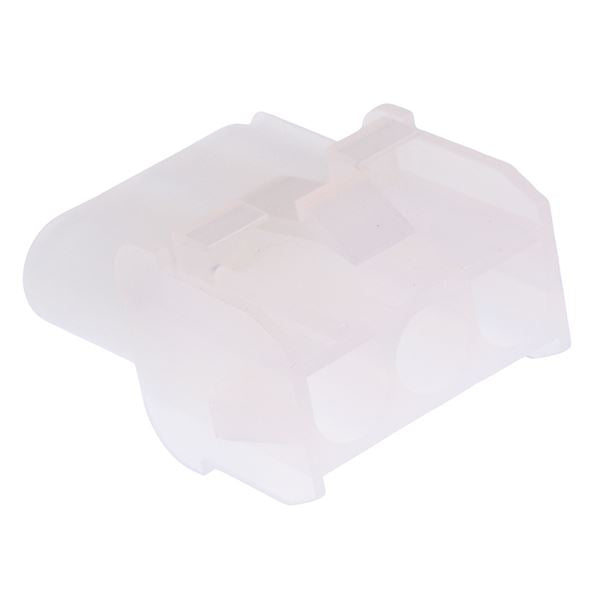

3 Way 6.35mm Female Mate N Lock Connector Housing
SKU 484715
MPN: 484715
Availability:
668 in stock
Original price
£0.26
-
Original price
£0.26
Original price
£0.26
£0.26
-
£0.26
Current price
£0.26
Single row 3 way female mate n lock housing featuring 6.35mm pitch suitable for mating with a male housing. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex MLX connectors.
6.35mm pitch Nylon 66 housing Rated Current: 10A Rated Voltage: 300V Wire range: 14-20AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 10A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Ways | 3 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 6.35mm |
| Termination Method | Crimp |
| Voltage Rating | 300VAC |
| Wire Range | 20-14AWG |
