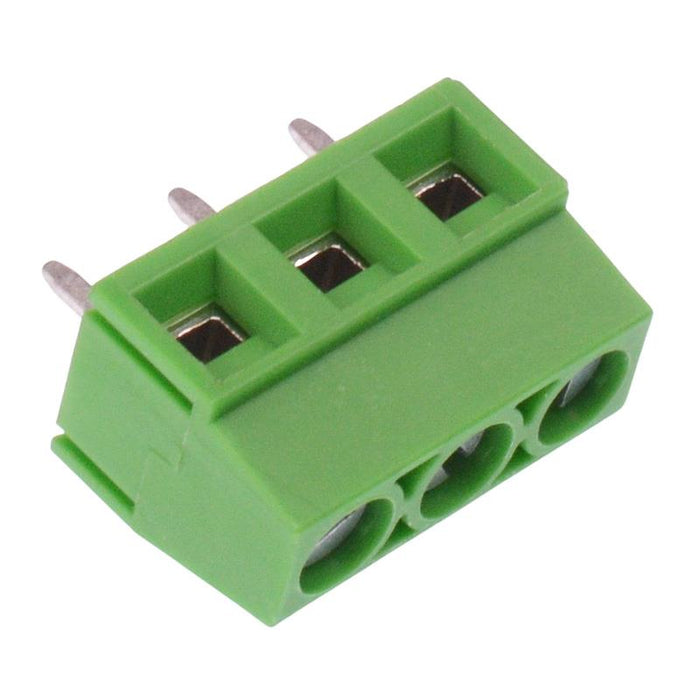

3-Way 5.08mm PCB Terminal Block Green 15A 300V
by PTR HARTMANN
SKU 487391
MPN: AKZ250/03-5,08-V-GREEN
Availability:
2104 in stock
Original price
£0.53
-
Original price
£0.53
Original price
£0.53
Inc VAT
£0.53
-
£0.53
Current price
£0.53
Inc VAT
3 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5.08mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
3 pole 5.08mm pitch Wire entry parallel to the board Material: PA66 Rating: 15A 300V Wire size: 28-14AWG
Specification
Back order lead time | 10 Days |
Colour | Green |
Contact material | Brass |
Current rating | 15A |
Housing material | PA66 |
Mounting type | PCB Mount |
Number of ways | 3 |
Operating temperature | -40°C to +105°C |
Pitch | 5.08mm |
Termination method | Screw |
Voltage rating | 300VAC |
Wire range | 28-14AWG |
