3 Way 3.96mm PCB Male Header
SKU 481122
MPN: 481122
Availability:
824 in stock
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
-
£0.13
Current price
£0.13

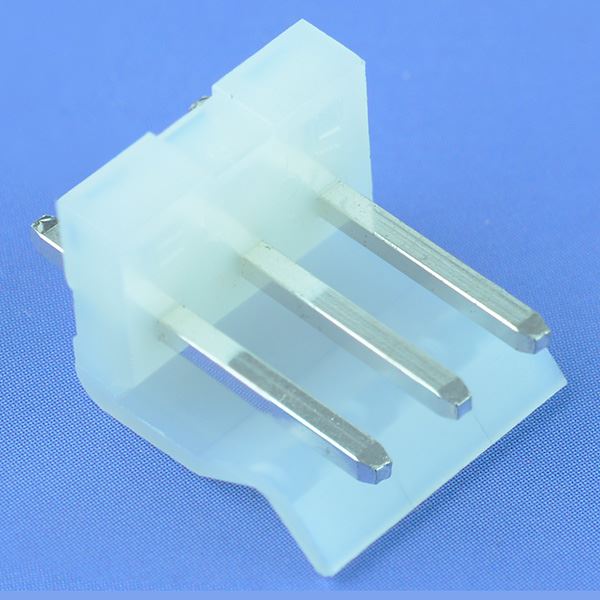

Single row 3 way pin header featuring 3.96mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated, suitable as a replacement for Molex 5239.
3.96mm pitch Solder termination PA66 housing Rated Current: 7A Rated Voltage: 250V Wire range: 18-24AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 7A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 3.96mm |
| Termination Method | Solder |
| Voltage Rating | 250VAC |
| Wire Range | 18-24AWG |
