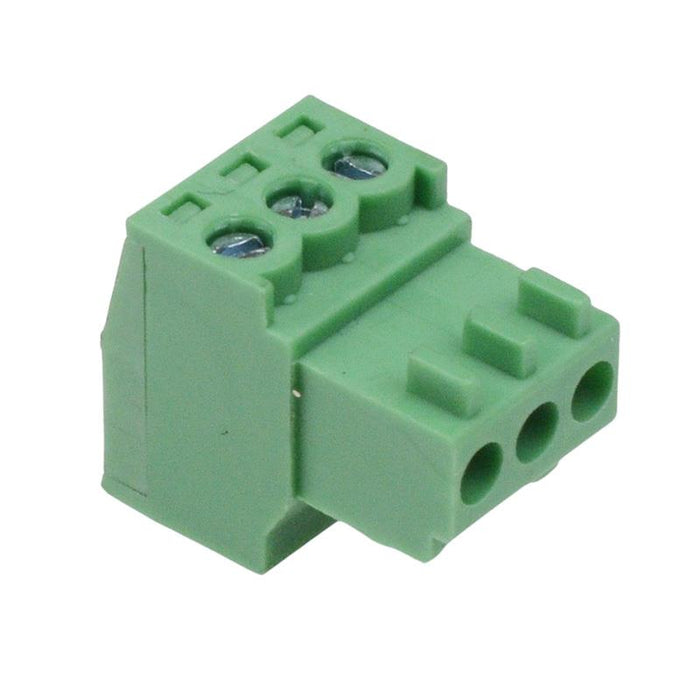

3-Way 2.54mm Right Angle Pluggable Terminal Block 4A 125V
SKU 488499
MPN: 488499
Availability:
480 in stock
Original price
£0.34
-
Original price
£0.34
Original price
£0.34
£0.34
-
£0.34
Current price
£0.34
3 pin pluggable PCB terminal block featuring a 2.54mm pitch and horizontal body orientation suitable for 28 to 20AWG cable.
3 poles 4A current rating 125V voltage rating 28-20AWG wire size Rising clamp termination
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Current Rating | 4A |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Screw |
| Voltage Rating | 125VAC |
| Wire Range | 28-20AWG |
