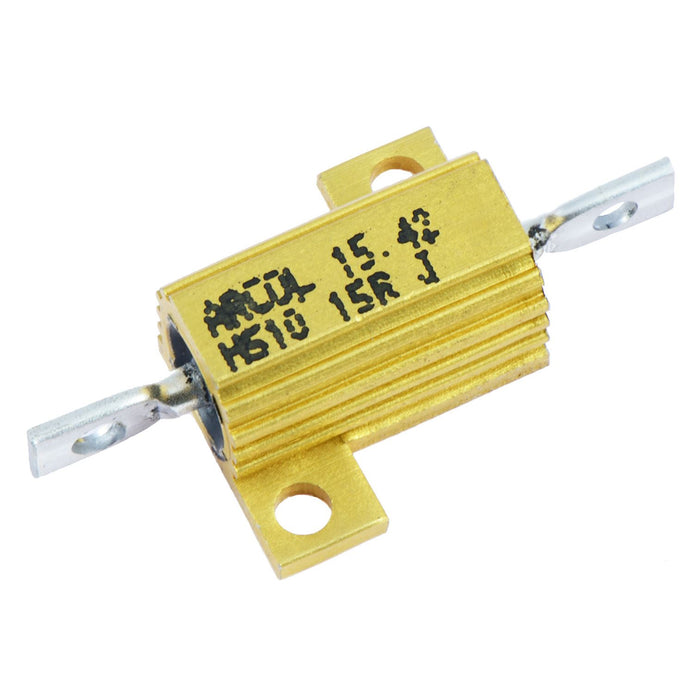

2R2 Arcol 10W Aluminium Clad Resistor HS10
by Arcol
SKU 399029
MPN:
Availability:
65 in stock
Original price
£2.03
-
Original price
£2.03
Original price
£2.03
Inc VAT
£2.03
-
£2.03
Current price
£2.03
Inc VAT
Arcol 10W aluminium clad resistors suitable for a wide range of applications where a high power dissipation is required. The resistors have a small package and are designed for direct heatsink mounting.
High power to volume Wound to maximise high pulse capability 5% tolerance Solder terminations Features 2 mounting holes Arcol HS series
Specification
Back order lead time | 10 Days |
Dimensions | 30.0 x 16.5 x 8.8mm (Length x Width x Height) |
Heatsink area | 415cm² |
Limiting element voltage | 160V |
Mpn | HS10 2R2 J |
Operating temperature | -55°C to +200°C |
Packaging | Bulk |
Power rating | 10W |
Resistance | 2.2Ω |
Temperature coefficient | ±100ppm/°C |
Termination | Solder Lug |
Tolerance | ±5% |
