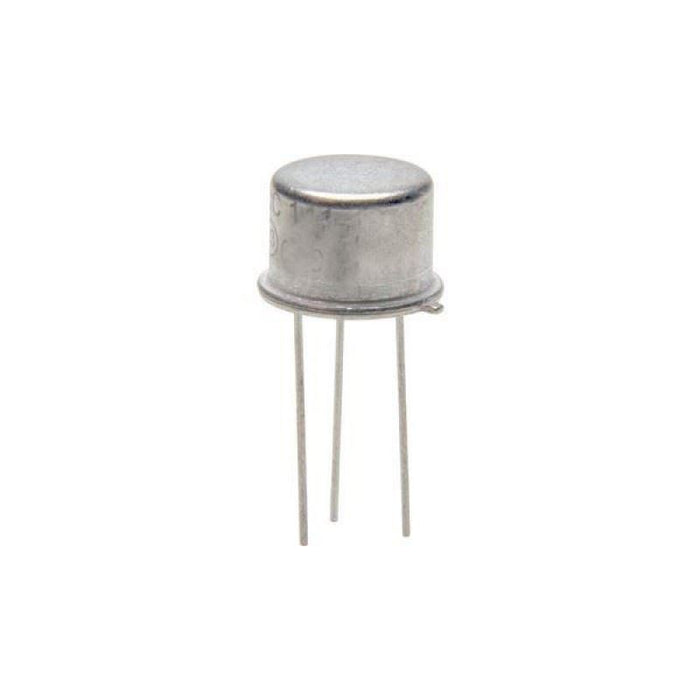

2N2219A Bipolar NPN 40V Transistor TO39
by CDIL
SKU 480926
MPN: 2N2219A
Availability:
13 in stock
Original price
£0.79
-
Original price
£0.79
Original price
£0.79
£0.79
-
£0.79
Current price
£0.79
The 2N2219A is a general purpose medium power bipolar transistor featuring a planar construction and housed in a TO92 package, suitable for low noise general purpose audio applications.
NPN polarity Collector emitter voltage: 40V Collector base voltage: 75V Collector current: 0.8A Power: 800mW Transition frequency: 300MHz TO39 package
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 75V |
| Collector Current | 800mA |
| Collector Emitter Voltage | 40V |
| DC Current Gain | 100-300 |
| Maximum Operating Temperature | 200°C |
| Mounting Type | Through Hole |
| Package | TO39 |
| Power Dissipation | 0.8/3W |
| Transistion Frequency | 300MHz |
| Type | NPN |
