2k Wirewound Precision Potentiometer 2W 5%
SKU 133072
MPN: 133072
Availability:
44 in stock
Original price
£3.95
-
Original price
£3.95
Original price
£3.95
£3.95
-
£3.95
Current price
£3.95

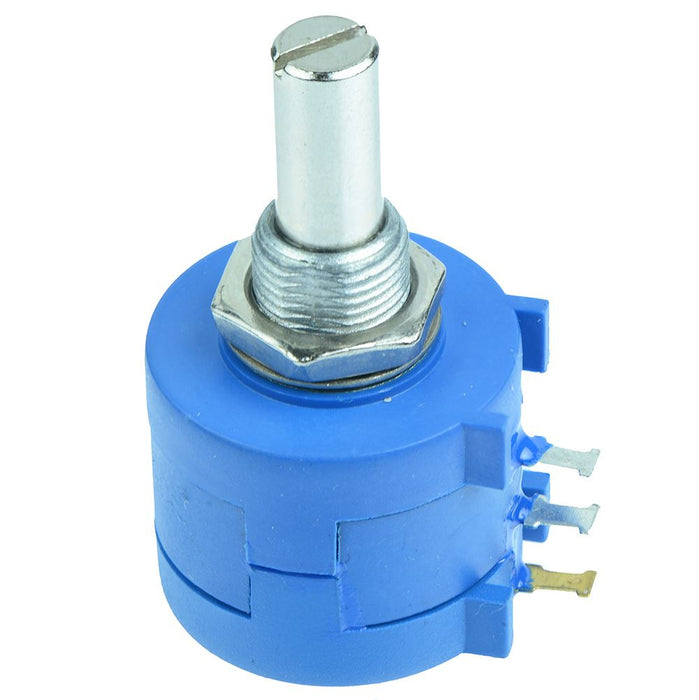

Mono wirewound potentiometer with a copper shaft suitable for use with user interfaces where a high precision is required.
Resistance: 2k Tolerance: 5% Comes complete with washer and nut Solder lug termination Shaft diameter: 6.3mm Shaft length: 20.6mm Body diameter: 22mm
Specification
| Back Order Lead Time | 30 Days |
| Mounting Hole Diameter | 10.5mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -55°C to +125°C |
| Pitch | 5.08mm |
| Power Rating | 2W |
| Resistance | 2KΩ |
| Shaft Diameter | 6.3mm |
| Termination Type | Solder Lug |
| Tolerance | ±5% |
