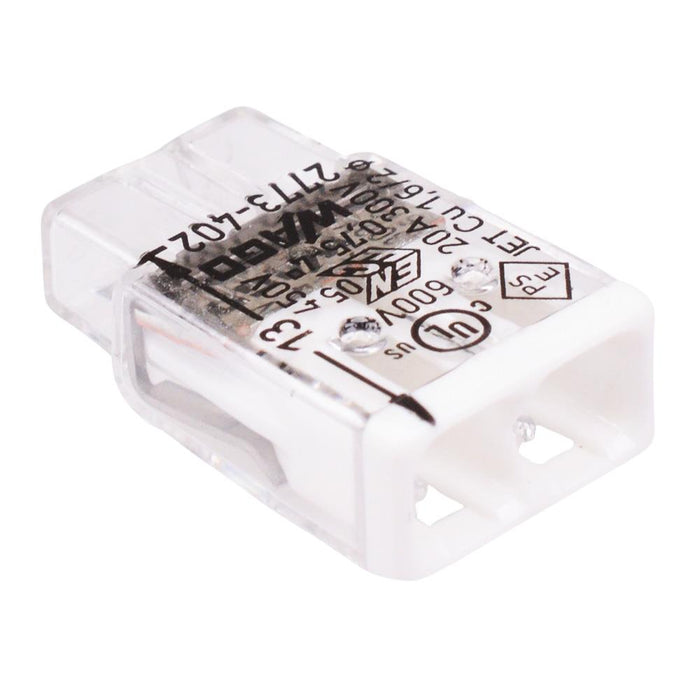

2773-402 WAGO Compact 2 Way Push Wire Connector 32A
by Wago
SKU 489324
MPN: 2773-402
Availability:
1075 in stock
Original price
£0.34
-
Original price
£0.34
Original price
£0.34
£0.34
-
£0.34
Current price
£0.34
The 2773-402 is a 2 way terminal block by Wago featuring a more compact design than the 2273 series and push-in termination for solid and stranded conductors. The connectors are compatible up to 4mm2 cable size and feature a transparent housing showing that the conductor is fully inserted.The connectors are rated up to 32A 450V and meet most major approvals.
Voltage rating: 450V Current rating: 32A Solid conductor: 20-12AWG 0.75-4mm2 Stranded conductor: 18-12AWG 1.5mm-4mm2 Strip length: 13mm CB, UL, ENEC, KEMA approved
Specification
| Back Order Lead Time | 5 Days |
| Colour | White |
| Contact Material | Copper |
| Current Rating | 32A |
| Housing Material | PC |
| Mounting Type | Cable Mount |
| Number of Ways | 2 |
| Operating Temperature | 85°C Maximum |
| Termination Method | Push In |
| Voltage Rating | 450V |
| Wire Range | 0.75-4mm² |
