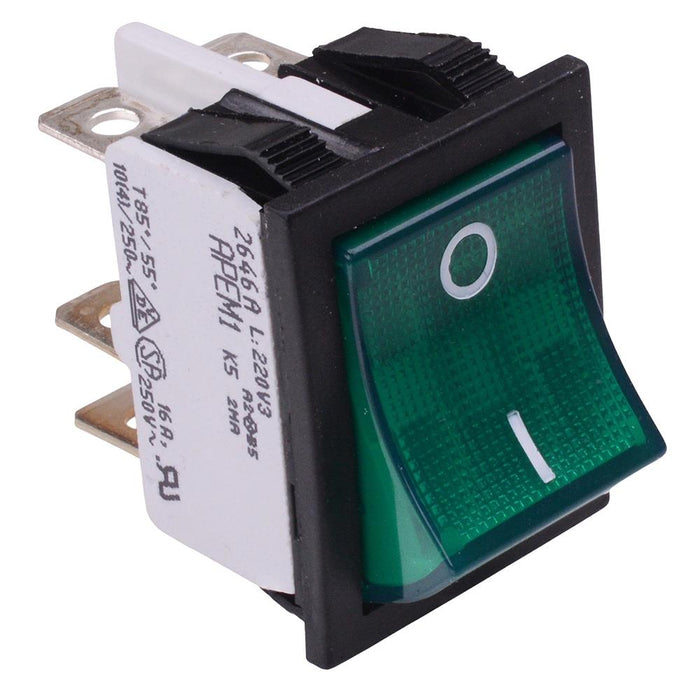

2646LH/2A23321L220V3 APEM 220V Green illuminated On-On Industrial Rocker Switch DPDT 16A
by APEM
SKU 487984
MPN: 2646LH/2A23321L-
Availability:
41 in stock
Original price
£5.38
-
Original price
£5.38
Original price
£5.38
£5.38
-
£5.38
Current price
£5.38
The 2646LH/2A23321L220V3 is an industrial rocker switch manufactured by APEM, featuring DPDT contacts and a 16A current rating. The switch features quick connect terminals and is suitable for panel applications requiring a high performance reliable switch.
Green 220V illumination On-On operation DPDT contacts 6.35mm quick connect terminals Silver contacts Panel cut-out: 22 x 30mm Panel thickness: 0.8-4mm Rating: 16A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 220VAC |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 30 x 22mm |
| Panel Thickness | 0.8-4mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
