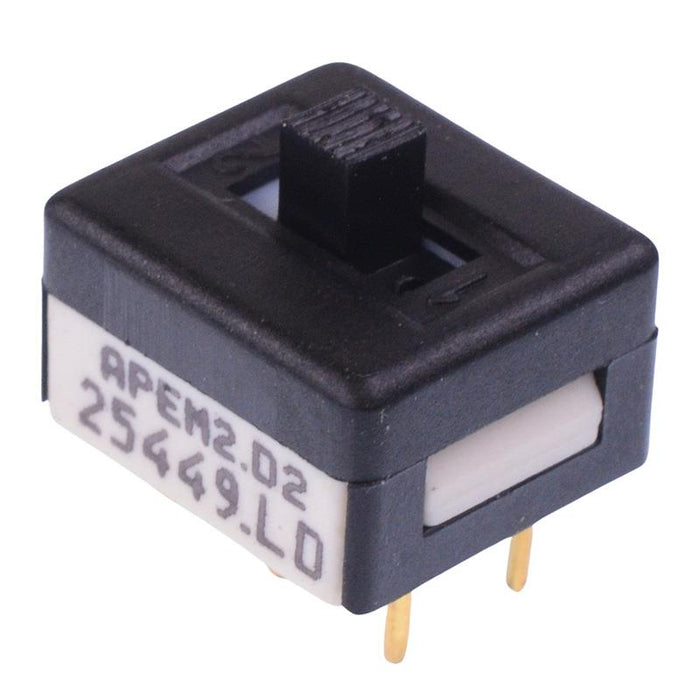

25449NLDH APEM On-Off-On Professional PCB Slide Switch High Actuator DPDT
by APEM
SKU 487302
MPN: 25449NLDH
Availability:
573 in stock
Original price
£3.29
-
Original price
£3.29
Original price
£3.29
£3.29
-
£3.29
Current price
£3.29
The 25449NLDH is a professional grade slide switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
DPDT contacts On-Off-On operation 5.08mm terminal spacing Gold plated brass contacts 2.8mm high actuator Rating: 100mA 30VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 10,000 Cycles |
| Material | PBT |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 5.08mm |
| Product Series | 25000N |
| Switch Operation | On-Off-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
