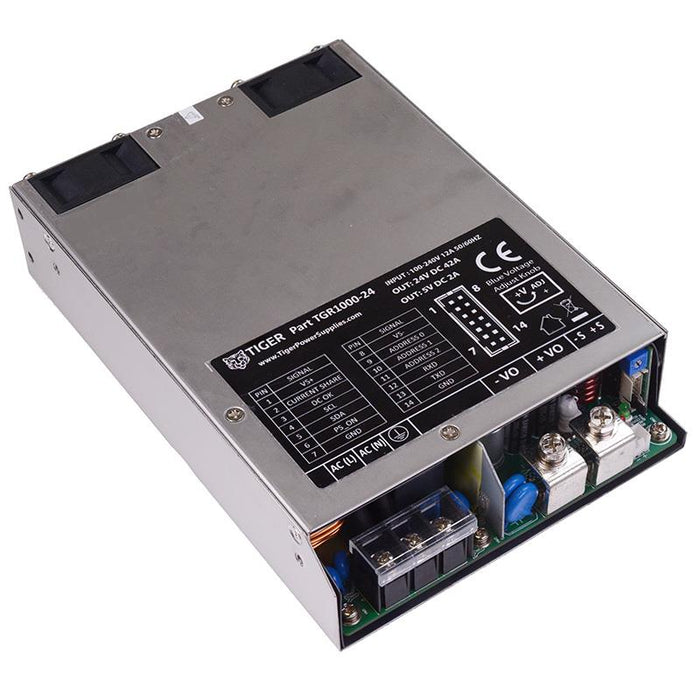

24VDC 42A 1000W Industrial Enclosed Power Supply
SKU 484424
MPN: 484424
Availability:
Only 2 left!
Original price
£208.50
-
Original price
£208.50
Original price
£208.50
£208.50
-
£208.50
Current price
£208.50
1000W 24VDC enclosed AC-DC switching power supply featuring a built-in DC fan and accepts AC or DC input. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.
Power: 600W Nominal main output: 24VDC / 42A Nominal auxillary output: 5VDC / 2A Output voltage adjustable range: 24-28.8VDC AC Input voltage: 90-264VAC DC Input voltage: 120-370VDC Low standby power consumption, high efficiency Output short circuit, over-current, over-voltage, over-temperature protection LED indicators for power On Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN60601, GB4943 standards Dimensions: 190 x 127 x 40.5mm (Length x Width x Height)
Specification
| Ambient Temperature | -40°C to 70°C |
| Back Order Lead Time | 5 Days |
| Input Frequency | 47-63Hz |
| Input Voltage | 90-264VAC / 120-370VDC |
| Output Connector | Terminal Block |
| Output Current | 42A |
| Output Voltage | 24VDC |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Over Voltage Protection | Yes |
| Power Rating | 1000W |
| Short Circuit Protection | Yes |
