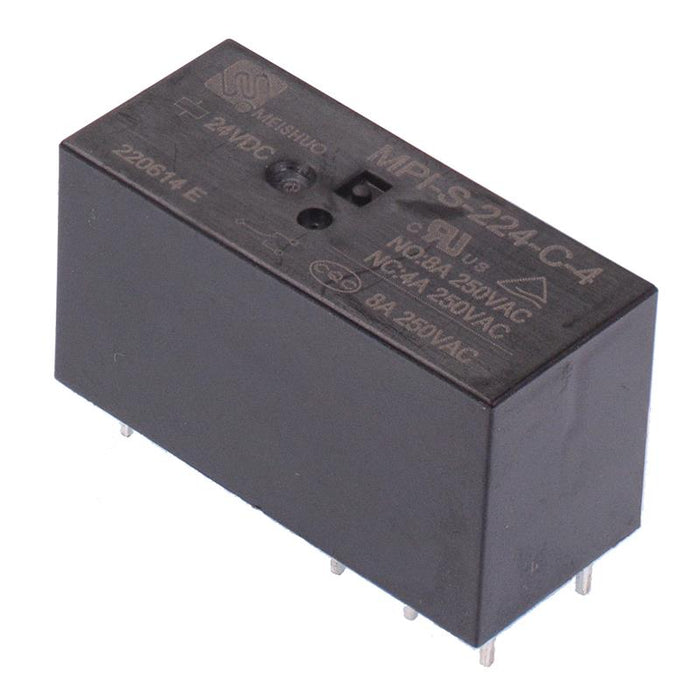

24V High Power PCB Relay 8A DPDT MPI-S-224-C-4
by Meishuo
SKU 485810
MPN: MPI-S-224-C-4
Availability:
294 in stock
Original price
£2.05
-
Original price
£2.05
Original price
£2.05
£2.05
-
£2.05
Current price
£2.05
24V miniature high power relay featuring DPDT contacts and 8A maximum switching current. The relay is housed in a compact package and is suitable for through hole PCB mounting or IC sockets.
24V coil voltage DPDT contact configuration Sealed construction Rated load: 8A 250VAC Maximum switching current: 8A Maximum switching voltage: 440VAC / 30VDC Maximum switching power: 2000VA Dimensions: 29 x 12.7 x 15.9mm (L x W x H)
Specification
| Ambient Temperature | -40°C to +105°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 1066Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 31.2VDC |
| Maximum Switching Current | 8A |
| Maximum Switching Voltage | 440VAC / 30VDC |
| Mounting Type | PCB |
| Number of Contacts | 8 |
| Power Consumption | 0.53W |
| Terminal Type | Through Hole |
