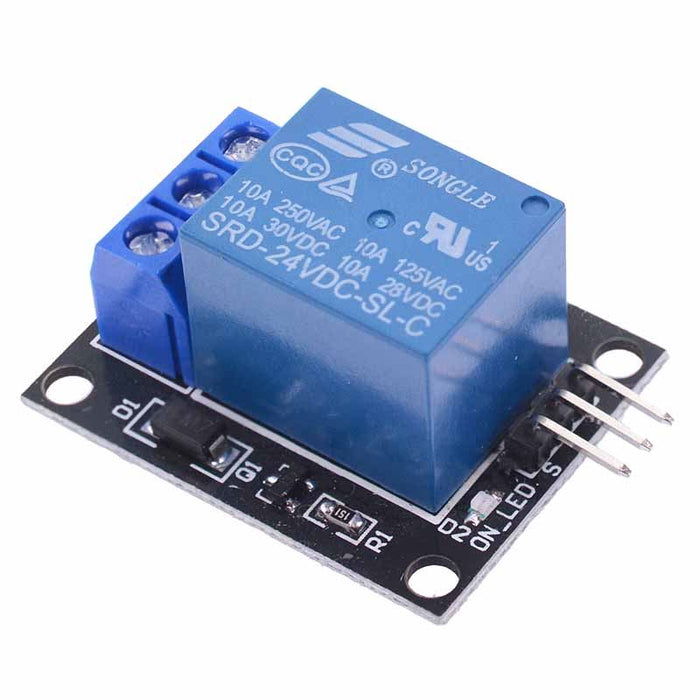

24V 1-Channel Relay Board Module
SKU 483193
MPN: 483193
Availability:
23 in stock
Original price
£1.17
-
Original price
£1.17
Original price
£1.17
£1.17
-
£1.17
Current price
£1.17
Active low relay board featuring 24V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1V to switch the inputs ON. Suitable for 5V and 3.3V devices, these boards are perfect for Raspberry Pi, Arduino, PIC and various other microcontrollers.
1 Channel Maximum switching voltage: 250VAC / 30VDC Maximum switching current: 10A Each relay features an LED indicator Dimensions: 37 x 26 x 18mm (Length x Width x Height)
Specification
| Back Order Lead Time | 30 Days |
| Coil Voltage | 24VDC |
| Number of Channels | 1 |
| Terminal Type | Pin Header |
